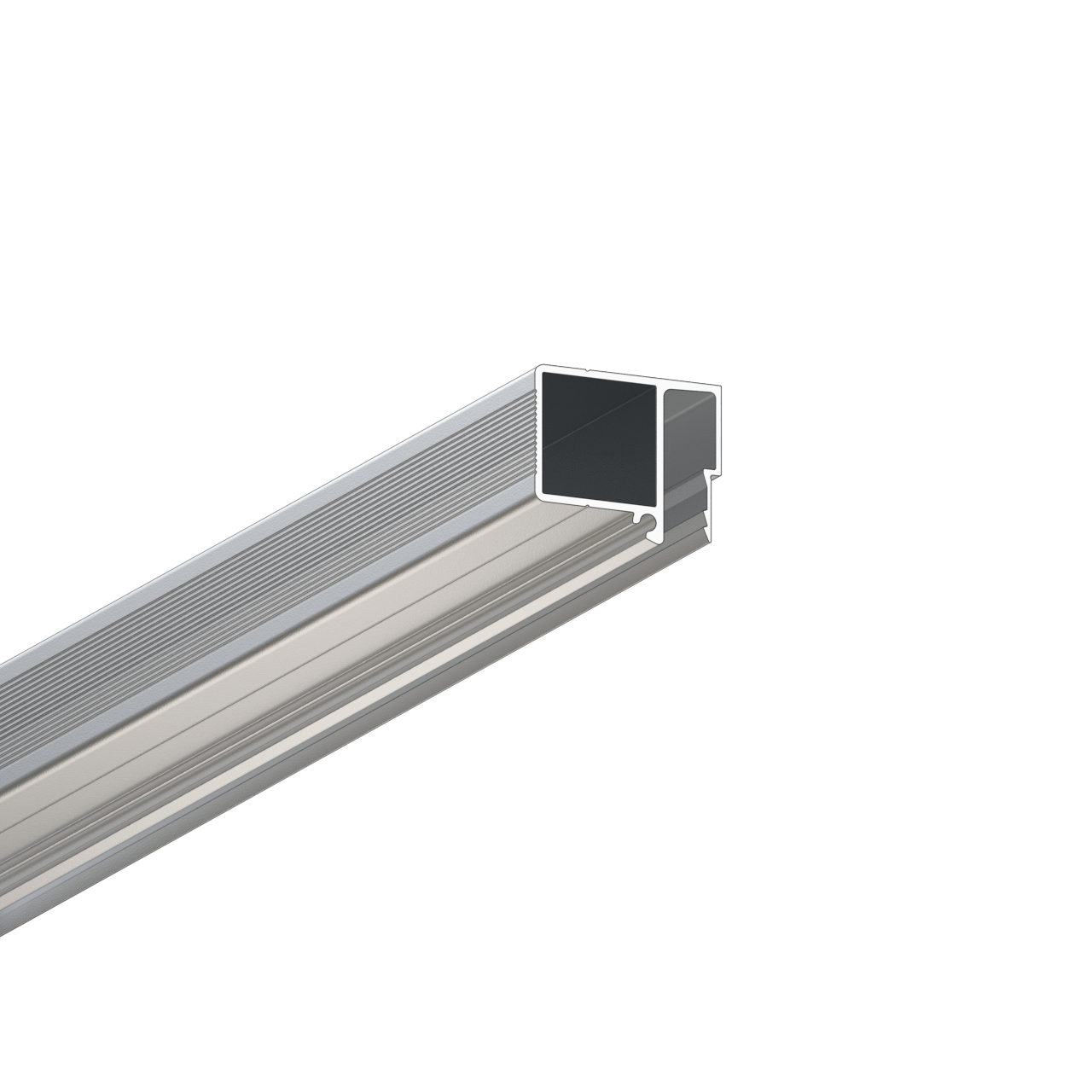

CLASSIX X101 is a stretch ceiling profile for a harpoon membrane fastening system. It is designed for bypassing complex walls and for situations where direct wall attachment is not possible.
Along the perimeter, the profile is covered with a wall insert for a clean finish.
- Material: aluminum
- Length: 2000 mm
- Finish: unfinished
- Membrane attachment: harpoon
Profile details
Profile details
Construction
- Vertical groove for harpoon fixation.
- Joining groove.
Included accessories
- CLASSIX X101 profile
Optional accessories
Mounting bracket and INSERTA Y008 insert.
Installation
Installation
Fastening
Fasten to the ceiling using self-tapping screws or anchors, either directly or through mounting angle brackets. Recommended fixing spacing: 200 to 300 mm.
Jointing
Create joints without transitions or visible gaps using a 2 mm rod and a 15 mm connecting band.
Ceiling membrane insertion
Insert the standard-cut membrane using a spatula with a working part at least 35 mm long and angled at 15 to 20 degrees.
Ceiling membrane removal
The membrane can be removed without damage.
Applications
Applications
Designed for bypassing complex walls where attachment is not possible.
