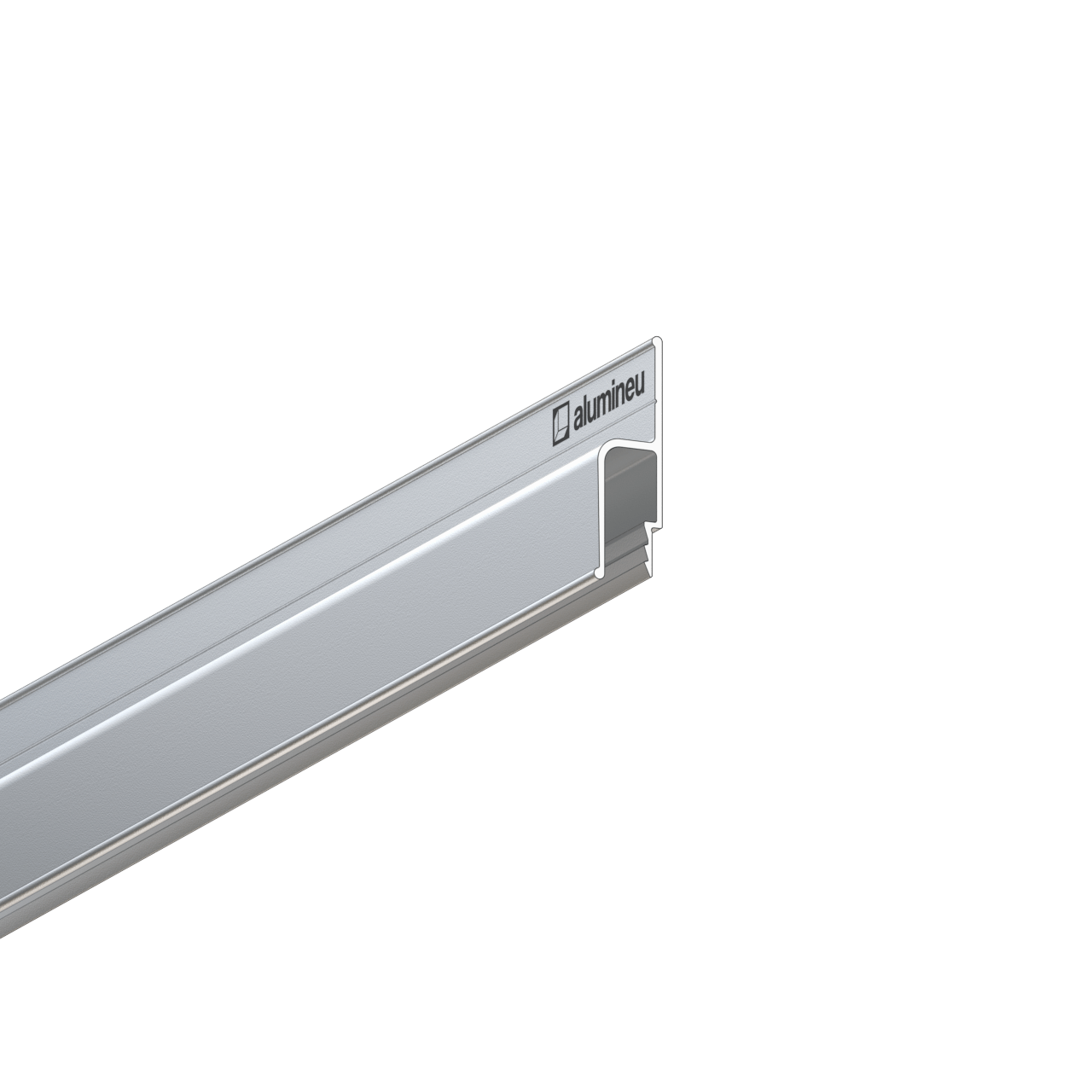

Profile CLASSIX X130
Profile CLASSIX X130
Regular price
$8.00 USD
Regular price
Sale price
$8.00 USD
Unit price
/
per
Couldn't load pickup availability
CLASSIX X130 is a wall profile for stretch ceilings with a harpoon membrane fastening system. It is designed for single-level stretch ceilings and does not require a wall insert as part of the profile geometry.
- Material: aluminum
- Length: 2000 mm
- Finish: unfinished
- Profile weight: 129 g/m
- Membrane attachment: harpoon
Profile details
Profile details
Construction
- Marking for wall mounting.
- Vertical groove for harpoon fixation.
Included accessories
- CLASSIX X130 profile
Installation
Installation
Fastening
Fasten to the wall using self-tapping screws or anchors. The fixing spacing must not exceed 150 mm.
Jointing
Create joints without transitions or visible gaps using a banding strip and two-component adhesive.
Ceiling membrane insertion
Insert the standard-cut membrane using a spatula with a working part at least 35 mm long and angled at 15 to 45 degrees. The harpoon groove is closed with a standard wall insert.
Ceiling membrane removal
The membrane can be removed without damage.
Applications
Applications
Designed for single-level stretch ceilings.
