Profile CONTURA X601
Profile CONTURA X601
Couldn't load pickup availability

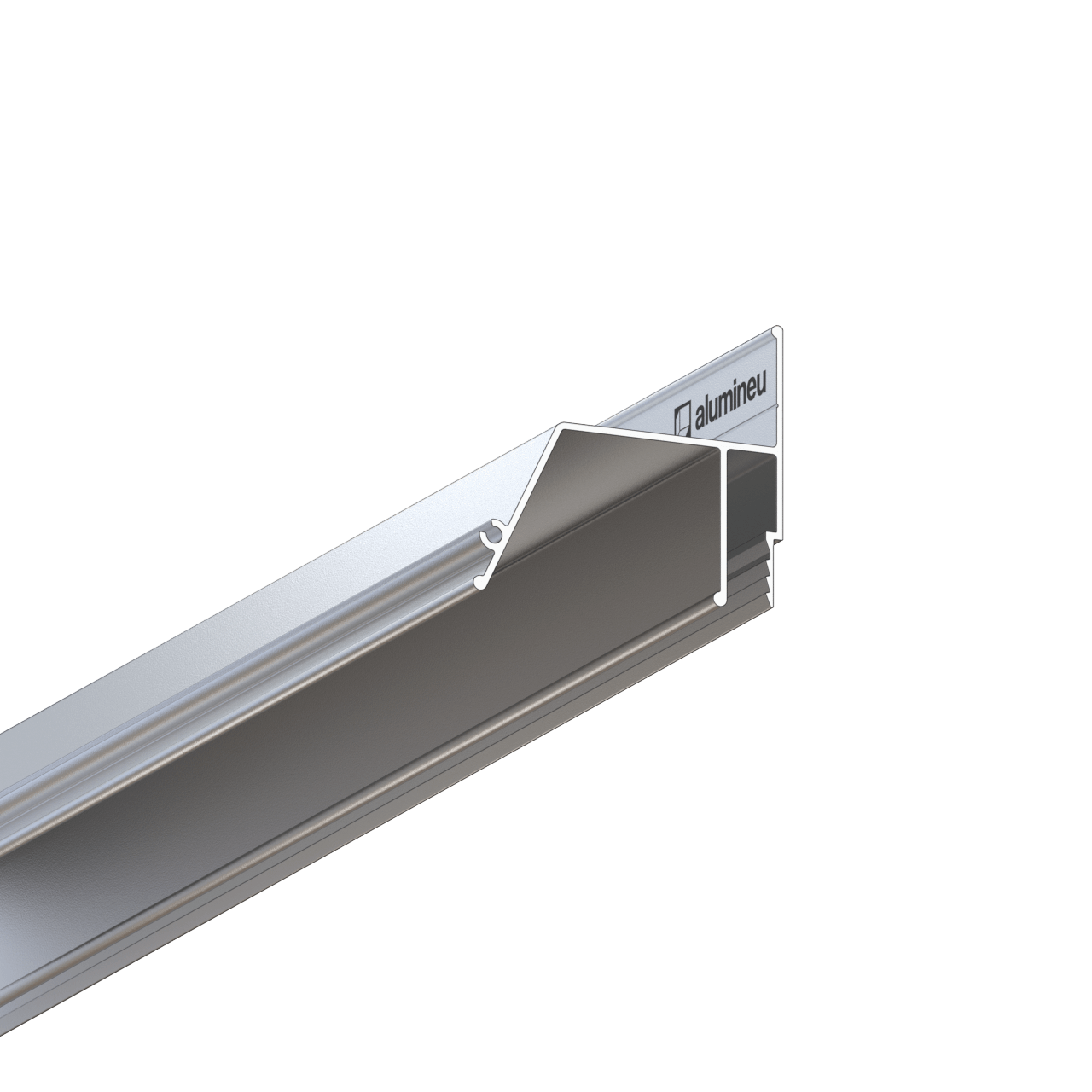

CONTURA X601 is a wall-mounted profile for stretch ceilings with a harpoon membrane fastening system. It includes an LED strip shelf for lighting through the membrane with downward light direction.
Along the perimeter, the profile is covered with a wall insert for a clean finished edge.
- Material: aluminum
- Length: 2000 mm
- Finish: unfinished
- Light opening width: 30 mm
- Membrane attachment: harpoon
Profile details
Profile details
Construction
- Joining groove.
- Vertical groove for harpoon fixation.
- Marking for wall mounting.
- Shelf for LED strip installation.
Included accessories
- CONTURA X601 profile
- Joining rods, 2 mm diameter: 2 pieces per joint
Installation
Installation
Fastening
Fasten to the wall using self-tapping screws or anchors. The fixing spacing must not exceed 150 mm.
On curved sections, use a finishing lip together with the profile. Seal relief cuts with metallized tape to eliminate light gaps.
Jointing
Create joints without transitions or visible gaps using a 2 mm rod.
Membrane recommendations
For lighting-through-membrane applications, do not use colored membranes or matte-finish membranes.
Ceiling membrane insertion
Insert the standard-cut membrane using a spatula with a working edge at least 35 mm long and angled at 15 to 45 degrees.
Ceiling membrane removal
The membrane can be removed without damage.
Applications
Applications
Designed for perimeter lighting through the membrane in stretch ceiling systems.
