Profile CURTINA X402
Profile CURTINA X402
Couldn't load pickup availability

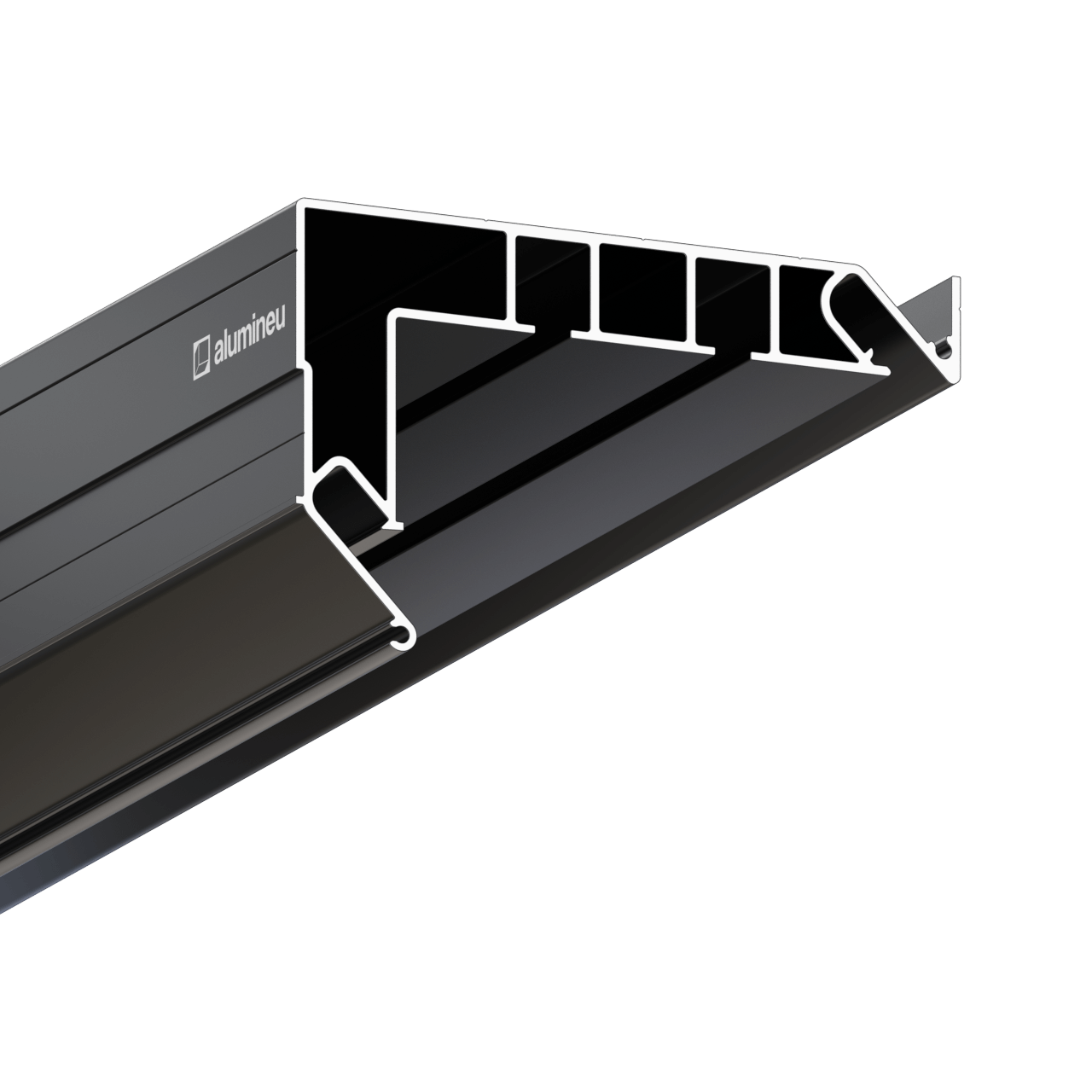

CURTINA X402 is an aluminum profile for concealed curtain niches with two tracks for curtains and sheers. It is designed for stretch ceilings with a harpoon membrane fastening system and bottom membrane insertion.
The profile supports backlighting, can be mounted flush with the wall, and creates a clean hidden curtain track effect.
- Material: aluminum
- Lengths: 2000 mm, 3200 mm
- Available finishes: white gloss, black matte
- Number of tracks: 2
- Membrane attachment: harpoon
Profile details
Profile details
Construction
- Joining groove.
- Angled groove for harpoon fixation.
- Groove for the connecting band.
- Shelf for LED strip installation.
- Marking for self-tapping screw installation.
- Reinforced bumper for greater rigidity.
Included accessories
- CURTINA X402 profile
- Cut connecting band: 2 pieces per joint
- Joining rods, 2 mm diameter: 2 pieces per joint
Optional accessories
Mounting angle bracket.
Installation
Installation
Fastening
Fasten the profile to the ceiling using self-tapping screws or anchors through mounting angle brackets. The fixing spacing must not exceed 1.5 m.
The profile can also be mounted flush with the wall.
Jointing
Create joints without transitions or visible gaps using a 2 mm rod and a 15 mm connecting band.
Applications
Applications
Designed for concealed curtain niches with backlighting in stretch ceiling systems.
