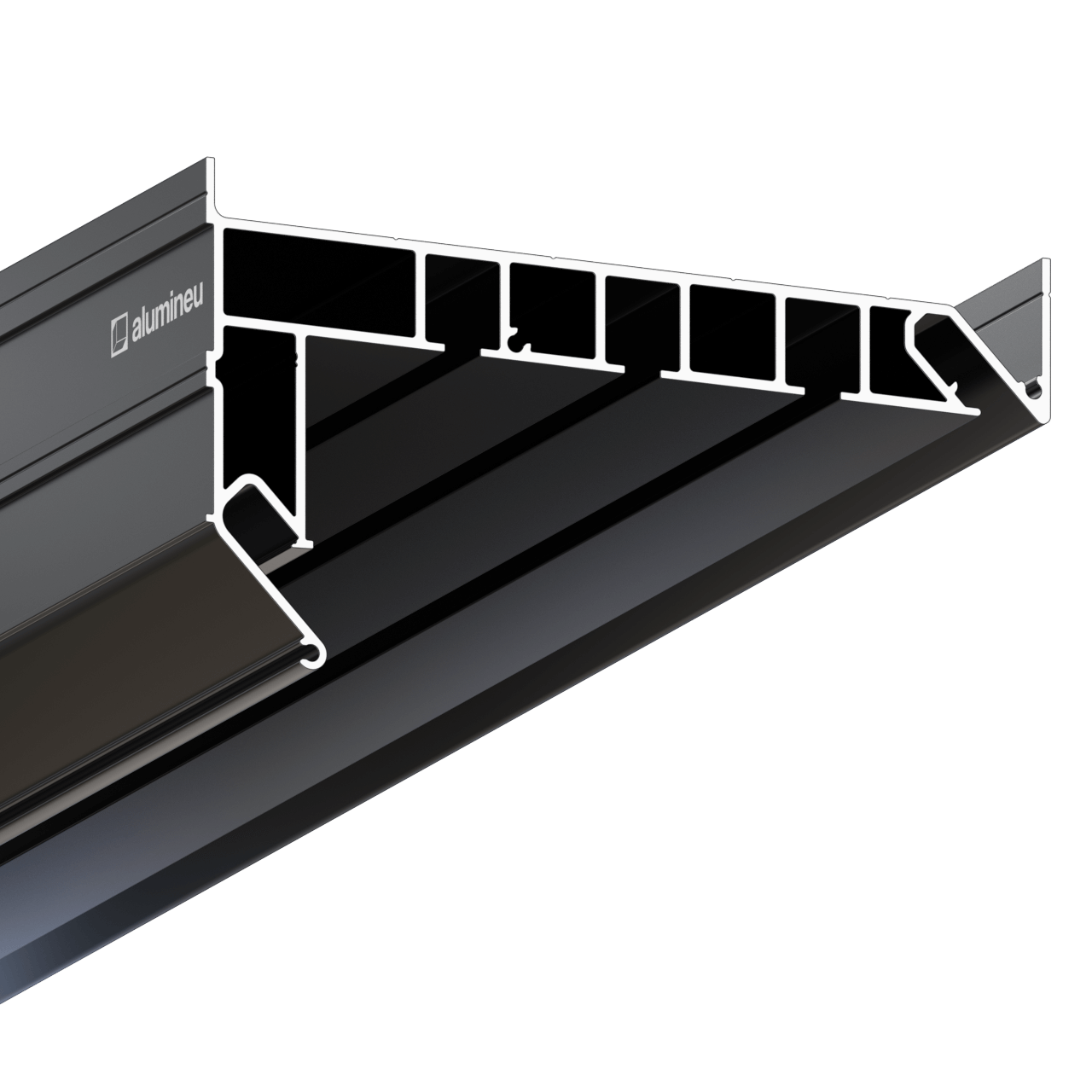

Profile CURTINA X403
Profile CURTINA X403
Couldn't load pickup availability
CURTINA X403 is an aluminum profile for concealed curtain niches with three tracks for curtains and sheers. It is designed for stretch ceilings with a harpoon membrane fastening system and bottom membrane insertion.
The profile supports backlighting and is intended for more complex niche layouts where an additional curtain track is required.
- Material: aluminum
- Lengths: 2200 mm, 3200 mm
- Available finishes: white gloss, black matte
- Number of tracks: 3
- Membrane attachment: harpoon
Profile details
Profile details
Construction
- Joining groove.
- Angled groove for harpoon fixation.
- Groove for the connecting band.
- Shelf for LED strip installation.
- Marking for self-tapping screw installation.
- Reinforced bumper for greater rigidity.
Included accessories
- CURTINA X403 profile
- Cut connecting band: 3 pieces per joint
- Joining rods, 2 mm diameter: 3 pieces per joint
Optional accessories
Mounting angle bracket.
Installation
Installation
Fastening
Fasten the profile to the ceiling using self-tapping screws or anchors through mounting angle brackets. The fixing spacing must not exceed 1.5 m.
The profile can also be mounted flush with the wall.
Jointing
Create joints without transitions or visible gaps using a 2 mm rod and a 15 mm connecting band.
Ceiling membrane insertion
Insert the upper-level membrane using a standard straight spatula. Insert the lower-level membrane using a spatula with a working part at least 35 mm long and angled at 70 to 90 degrees.
Applications
Applications
Designed for concealed curtain niches with backlighting where three curtain tracks are required.
