Profile CURTINA X404

Profile CURTINA X404

$285.00 USD
$285.00 USD
Sale Sold out
Color
Length

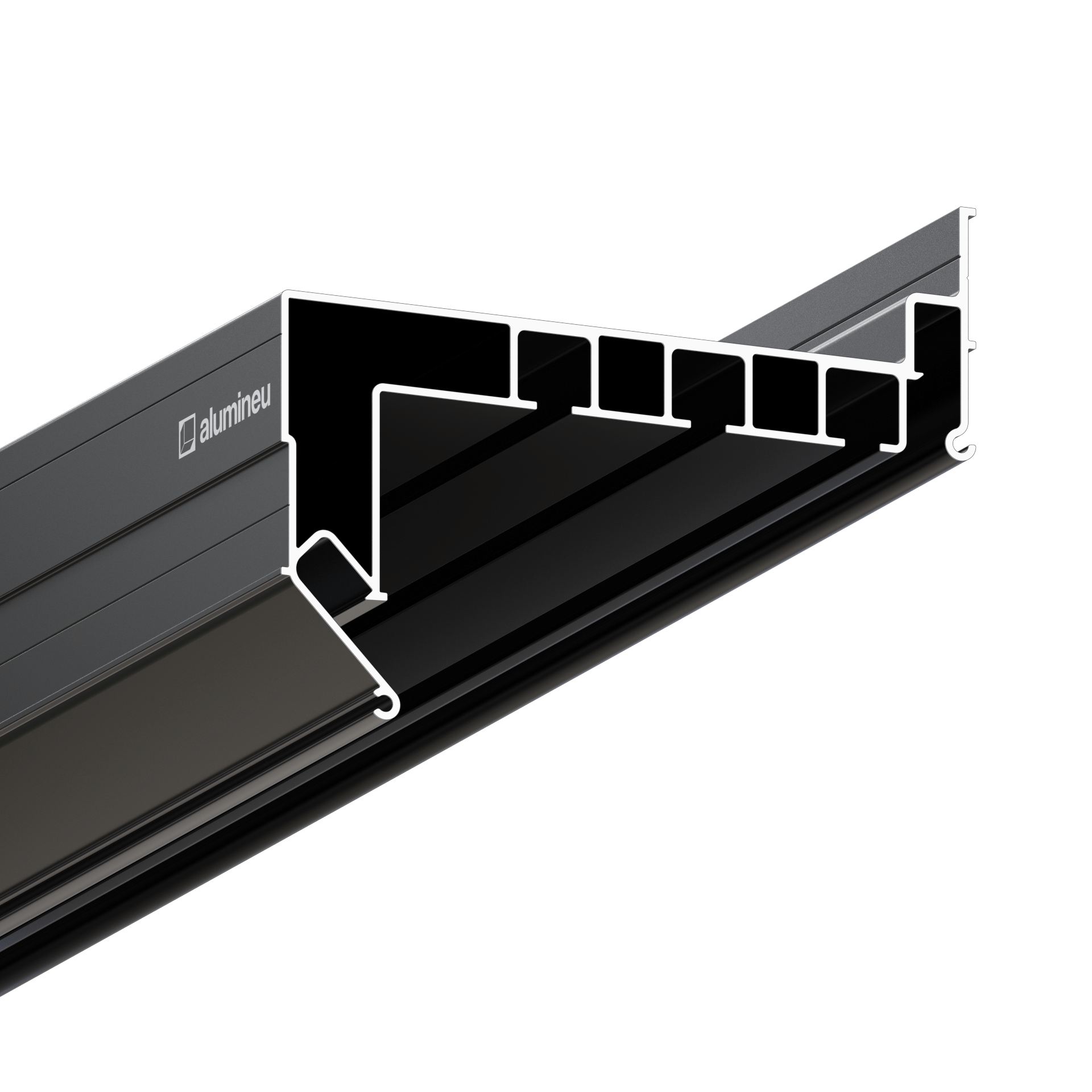

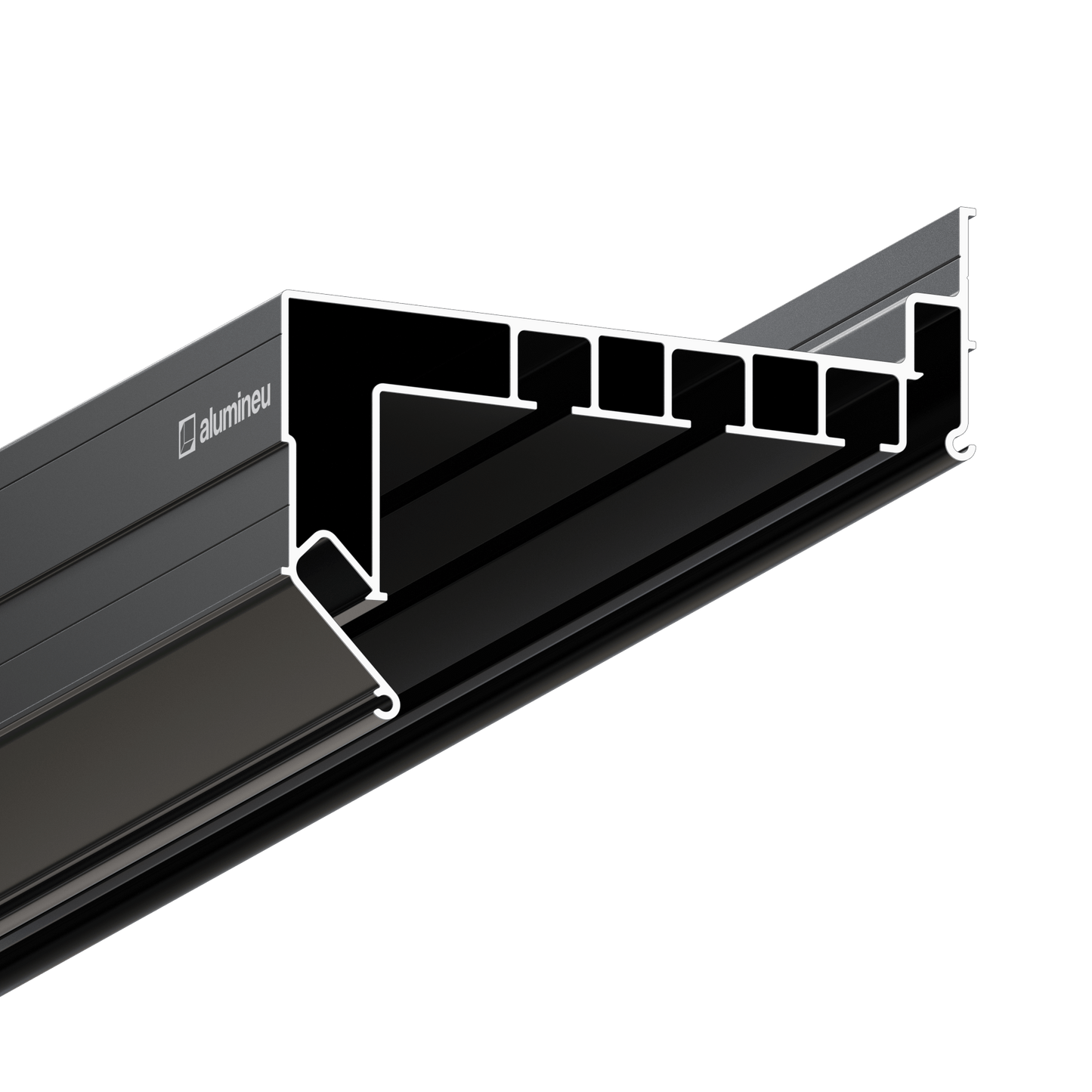

CURTINA X404 is an aluminum profile for concealed curtain niches with three tracks for curtains and sheers. It is designed for stretch ceilings with a harpoon membrane fastening system.

The profile supports backlighting and combines a rigid construction with a clean integrated niche solution.

  • Material: aluminum
  • Lengths: 2200 mm, 3200 mm
  • Finish: white gloss
  • Number of tracks: 3
  • Membrane attachment: harpoon

Profile details

Construction

  • Reinforced bumper for greater rigidity.
  • Marking for self-tapping screw installation.
  • Shelf for LED strip installation.
  • Groove for the connecting band.
  • Angled groove for harpoon fixation.
  • Joining groove.

Included accessories

  • CURTINA X404 profile
  • Cut connecting band: 2 pieces per joint
  • Joining rods, 2 mm diameter: 2 pieces per joint

Optional accessories

Mounting angle bracket.

Installation

Fastening

Fasten the profile to the ceiling using self-tapping screws or anchors through mounting angle brackets. The fixing spacing must not exceed 1.5 m.

The profile can also be mounted flush with the wall.

Jointing

Create joints without transitions or visible gaps using a 2 mm rod and a 15 mm connecting band.

Applications

Designed for concealed curtain niches with backlighting in stretch ceiling systems.
