Profile CURTINA X405

Profile CURTINA X405

$311.00 USD
$311.00 USD
Sale Sold out
Color
Length

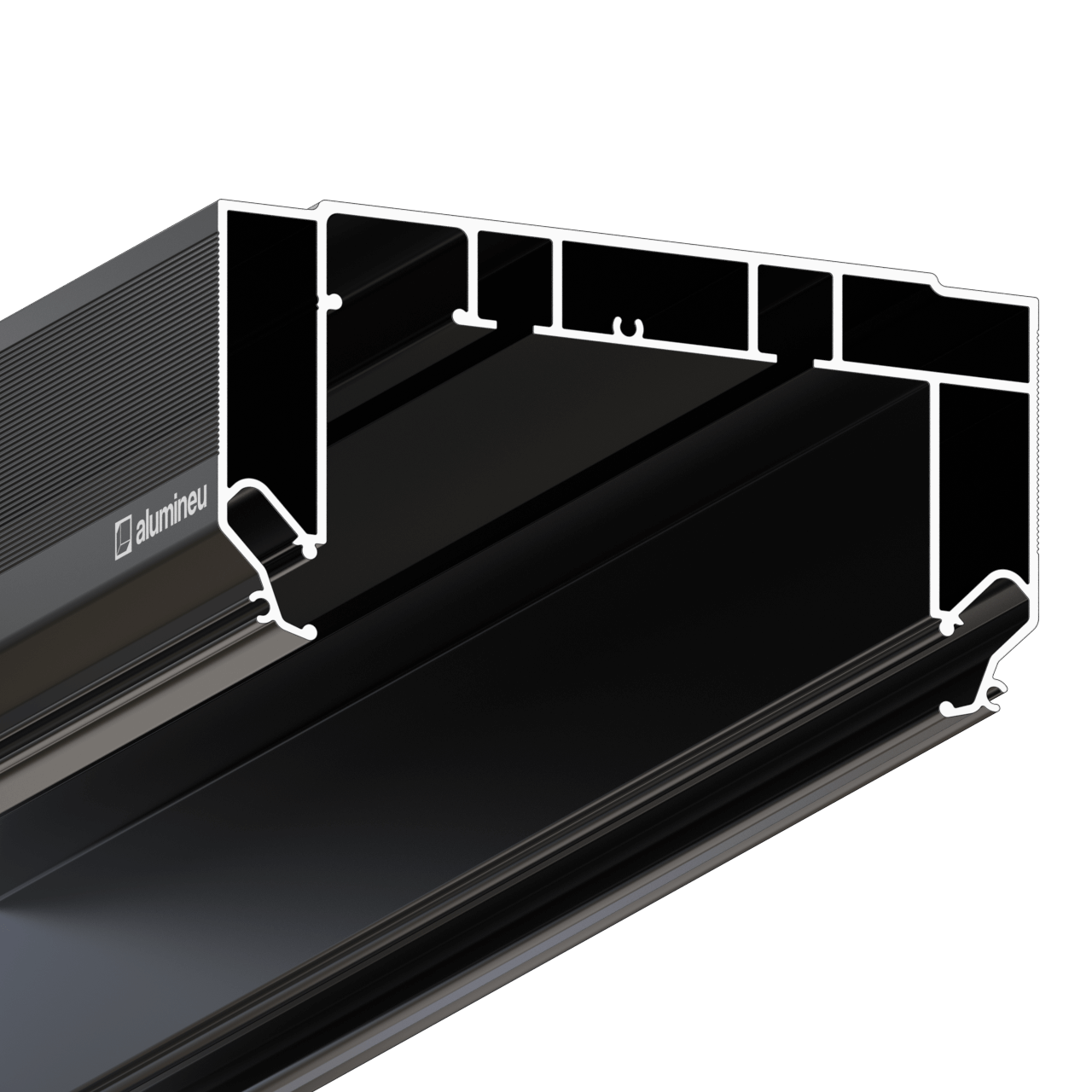

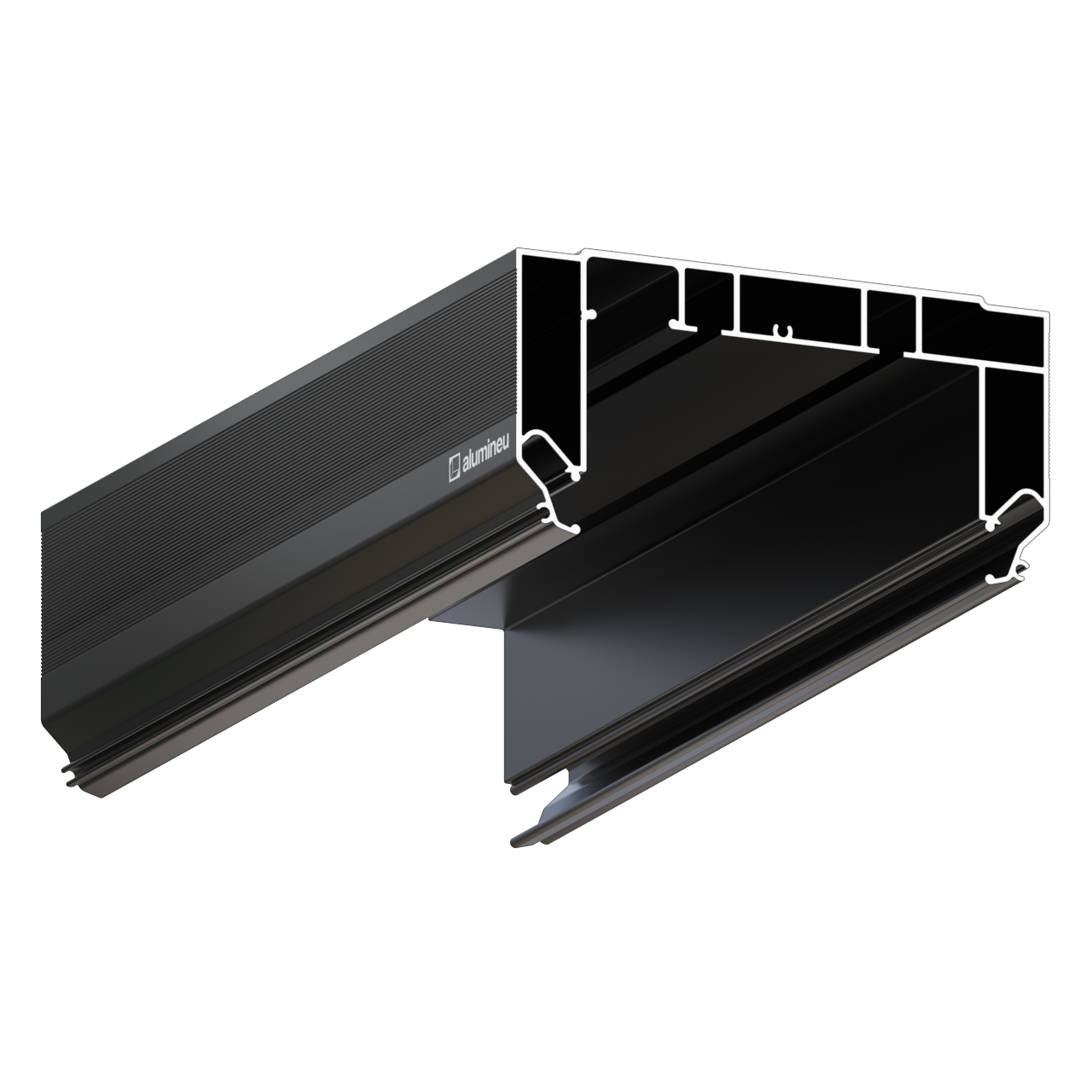

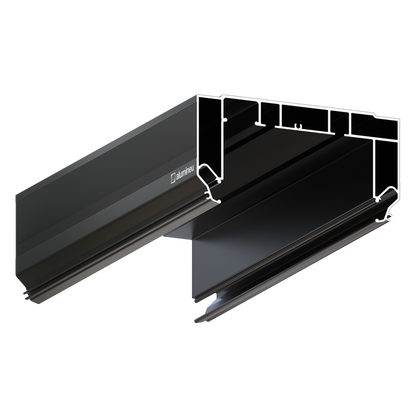

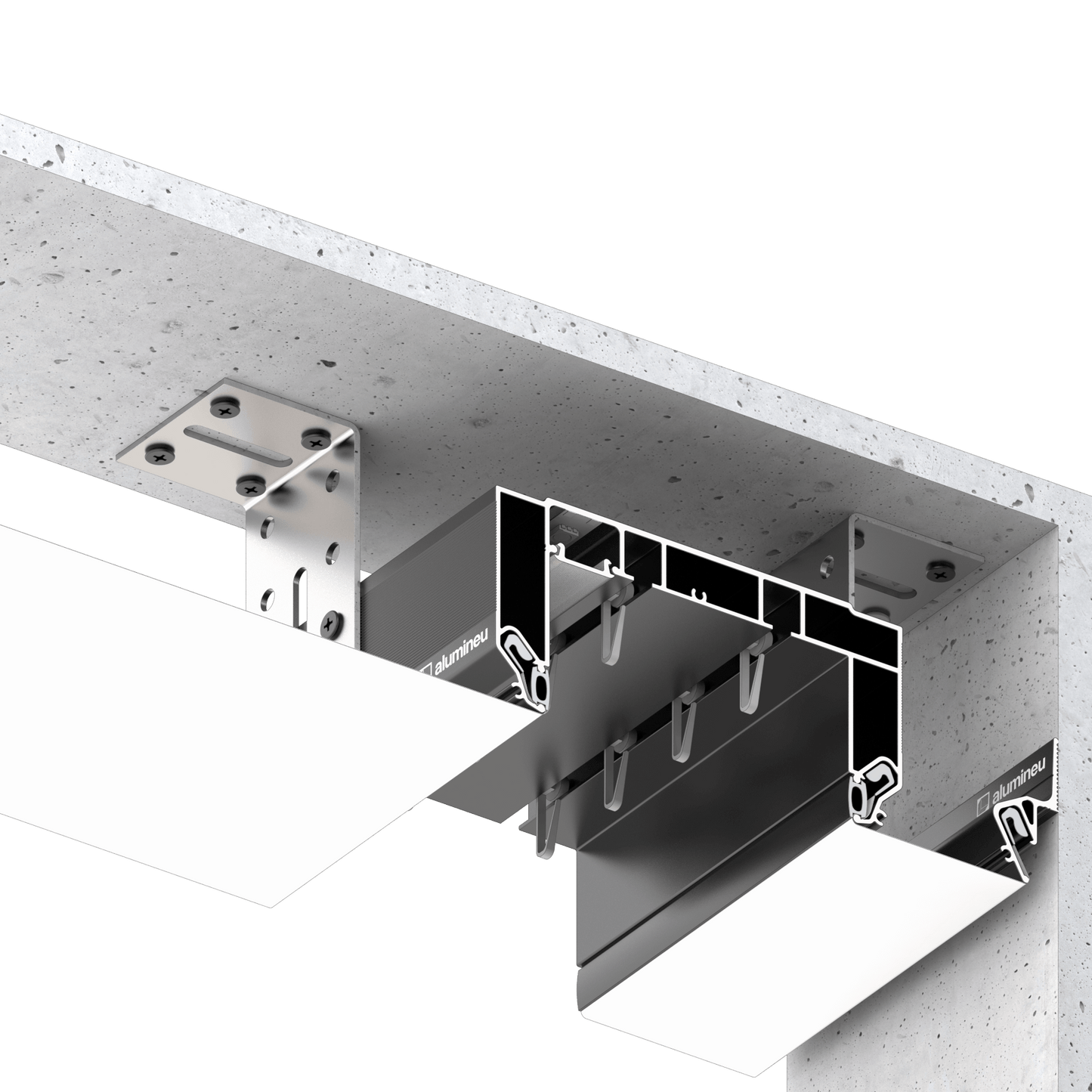

CURTINA X405 is an aluminum profile for concealed curtain niches with lighting and two grooves for curtains and drapes. It is designed for stretch ceilings with a harpoon membrane fastening system and side membrane insertion.

The profile combines hidden curtain functionality, integrated lighting, and a clean architectural reveal.

  • Material: aluminum
  • Lengths: 2000 mm, 2200 mm, 3200 mm
  • Available finishes: white matte, black matte
  • Number of tracks: 2
  • Membrane attachment: harpoon

Profile details

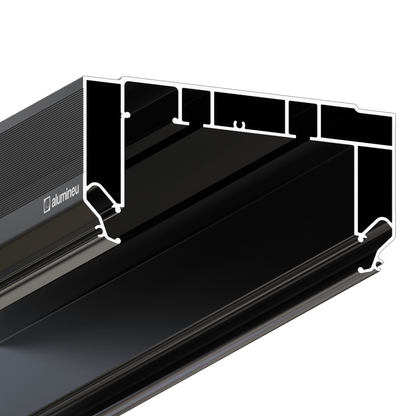

Construction

  • Joining grooves.
  • Grooves for harpoon fixation.
  • Groove for insert.
  • Shelf for LED strip installation.
  • Hook tracks.

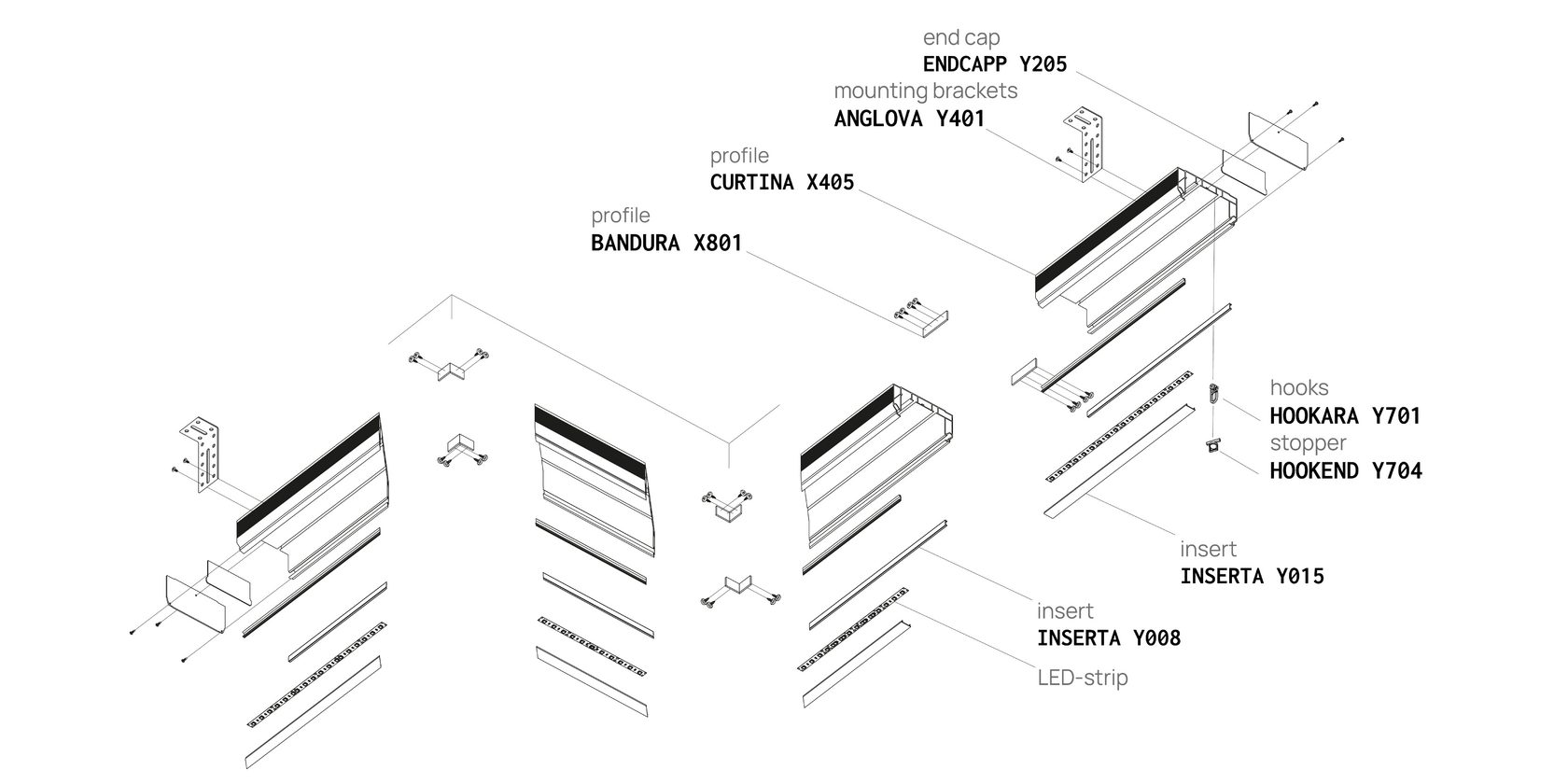

Included accessories

  • CURTINA X405 profile
  • Cut connecting band: 2 pieces per joint
  • Joining rods, 2 mm diameter: 3 pieces per joint
  • INSERTA Y008 separating insert: 2 m per 1 m of profile

Optional accessories

Mounting angle bracket, INSERTA Y008 separating insert, and INSERTA Y015 light-diffusing insert.

Installation

Fastening

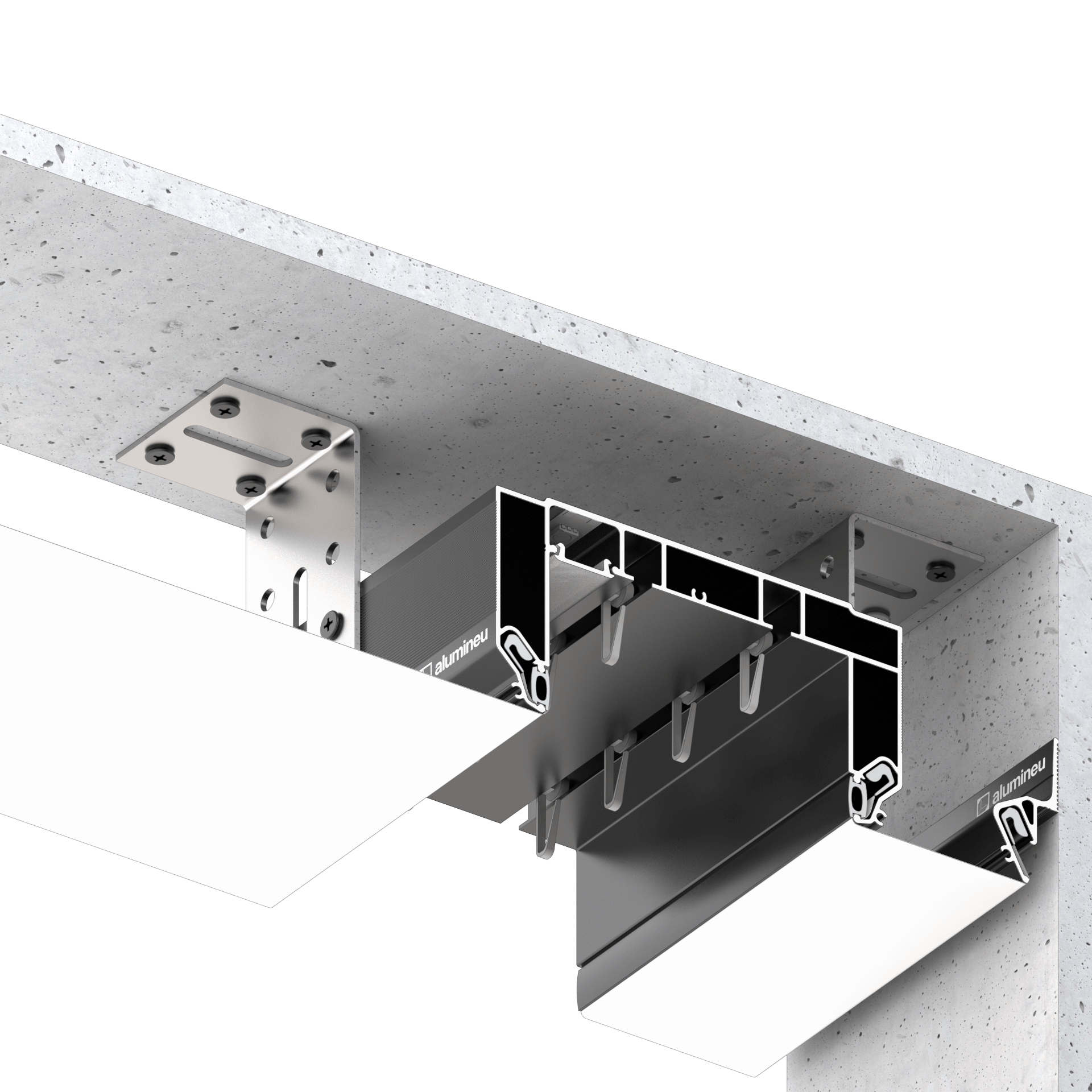

Fasten the profile to the ceiling using self-tapping screws or anchors through mounting angle brackets. The fixing spacing must not exceed 1.5 m.

Jointing

Create joints without transitions or visible gaps using a 2 mm rod and a 15 mm connecting band.

Ceiling membrane insertion

Insert a standard-cut membrane using a standard straight spatula. For freestanding cornice niches, bond the membrane to the end cap.

Applications

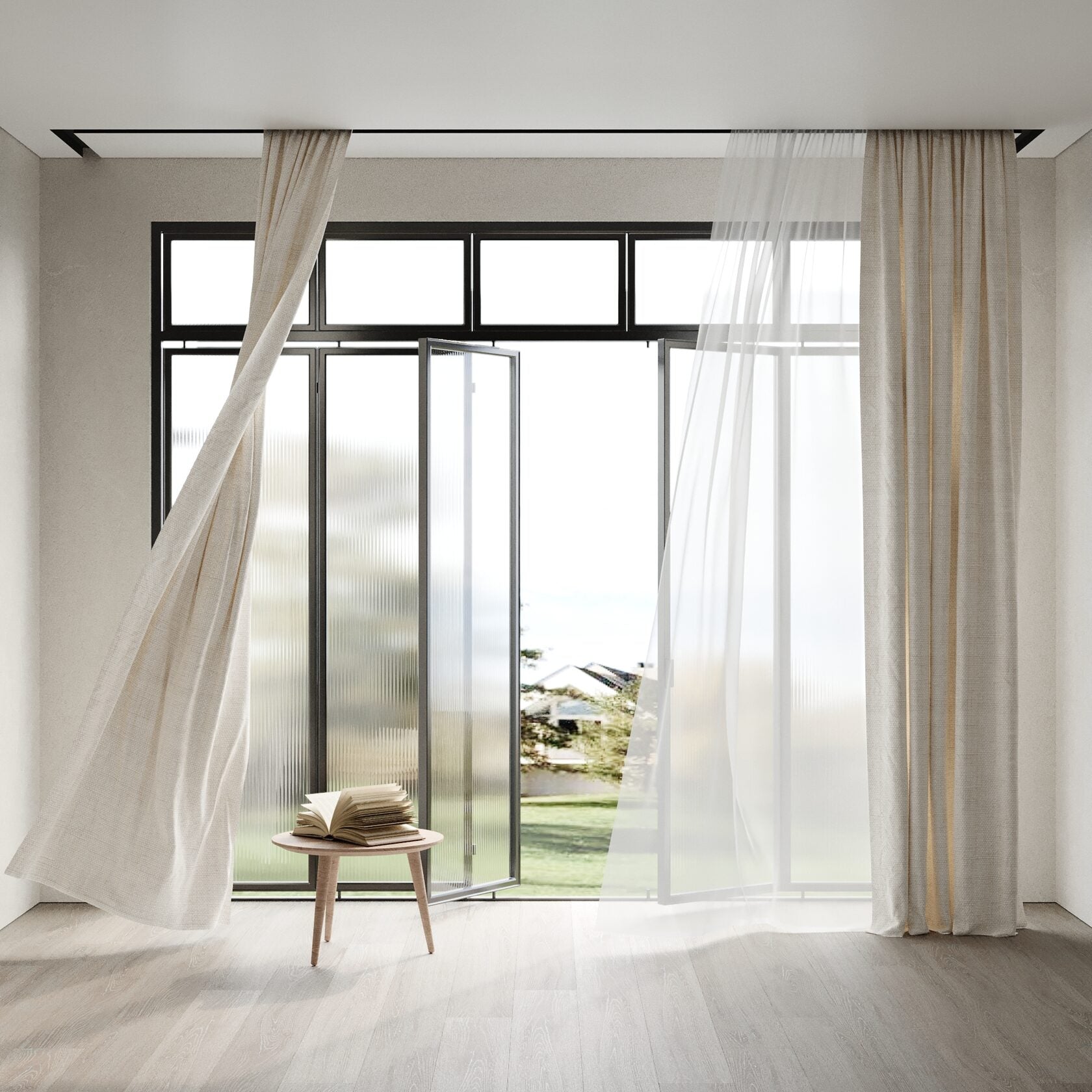

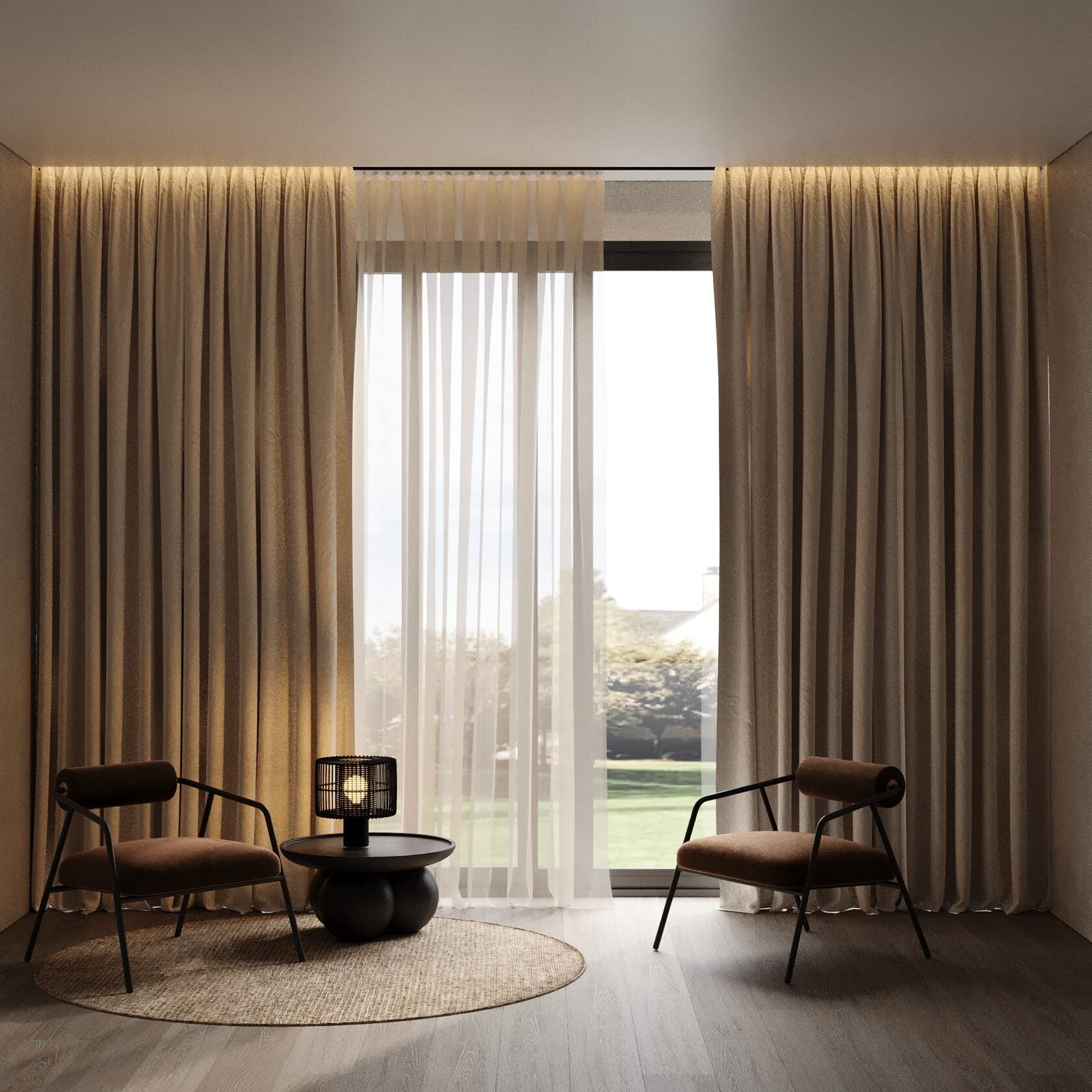

Designed for concealed curtain niches with integrated lighting in stretch ceiling systems.

Downloads

Catalog.pdf
