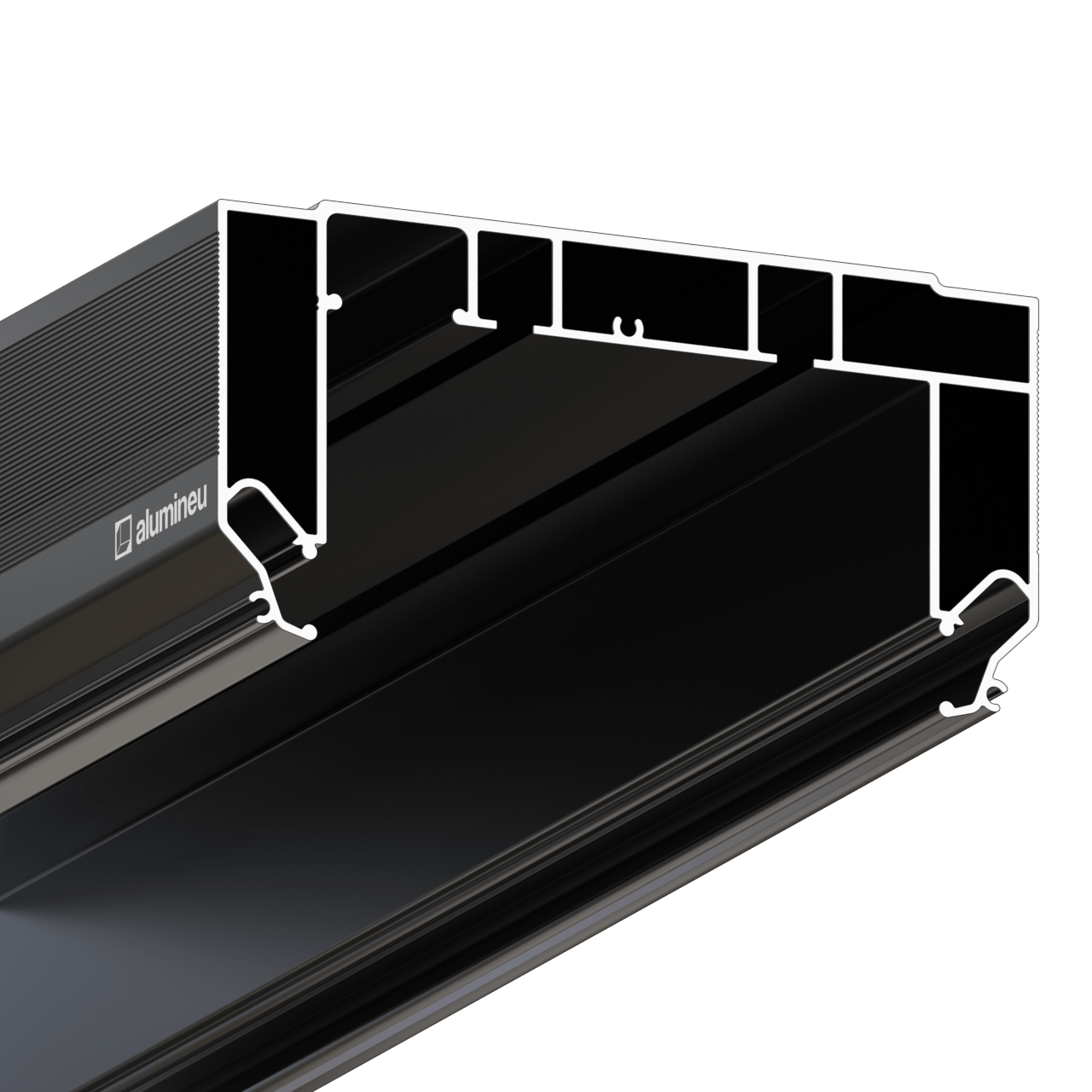

CURTINA X405 m is an aluminum profile for concealed curtain niches with lighting and two grooves for curtains and drapes. It is designed for stretch ceilings with a harpoon membrane fastening system and side membrane insertion.

This variant is intended for integrated lighting layouts and concealed curtain installations with clean, minimalist detailing.

  • Material: aluminum
  • Lengths: 2200 mm, 3200 mm
  • Available finishes: white matte, black matte
  • Number of tracks: 2
  • Membrane attachment: harpoon

Profile details

Construction

  • Groove for INSERTA Y015 insert.
  • Grooves for harpoon fixation.
  • Grooves for INSERTA Y008 insert.
  • Joining grooves.
  • Shelf for LED strip installation.
  • Hook tracks.

Included accessories

  • CURTINA X405 m profile
  • Cut connecting band: 2 pieces per joint
  • Joining rods, 2 mm diameter: 3 pieces per joint
  • INSERTA Y008 separating insert: 2 m per 1 m of profile

Optional accessories

Mounting angle bracket, INSERTA Y008 separating insert, and INSERTA Y015 light-diffusing insert.

Installation

Fastening

Fasten the profile to the ceiling using self-tapping screws or anchors through mounting brackets. The fixing spacing must not exceed 1.5 m.

Jointing

Create joints without transitions or visible gaps using a 2 mm rod and a 15 mm connecting band.

Applications

Designed for concealed curtain niches with integrated lighting in stretch ceiling systems.
