Profile CURTINA X406

Profile CURTINA X406

$166.00 USD
$166.00 USD
Sale Sold out
Color
Length

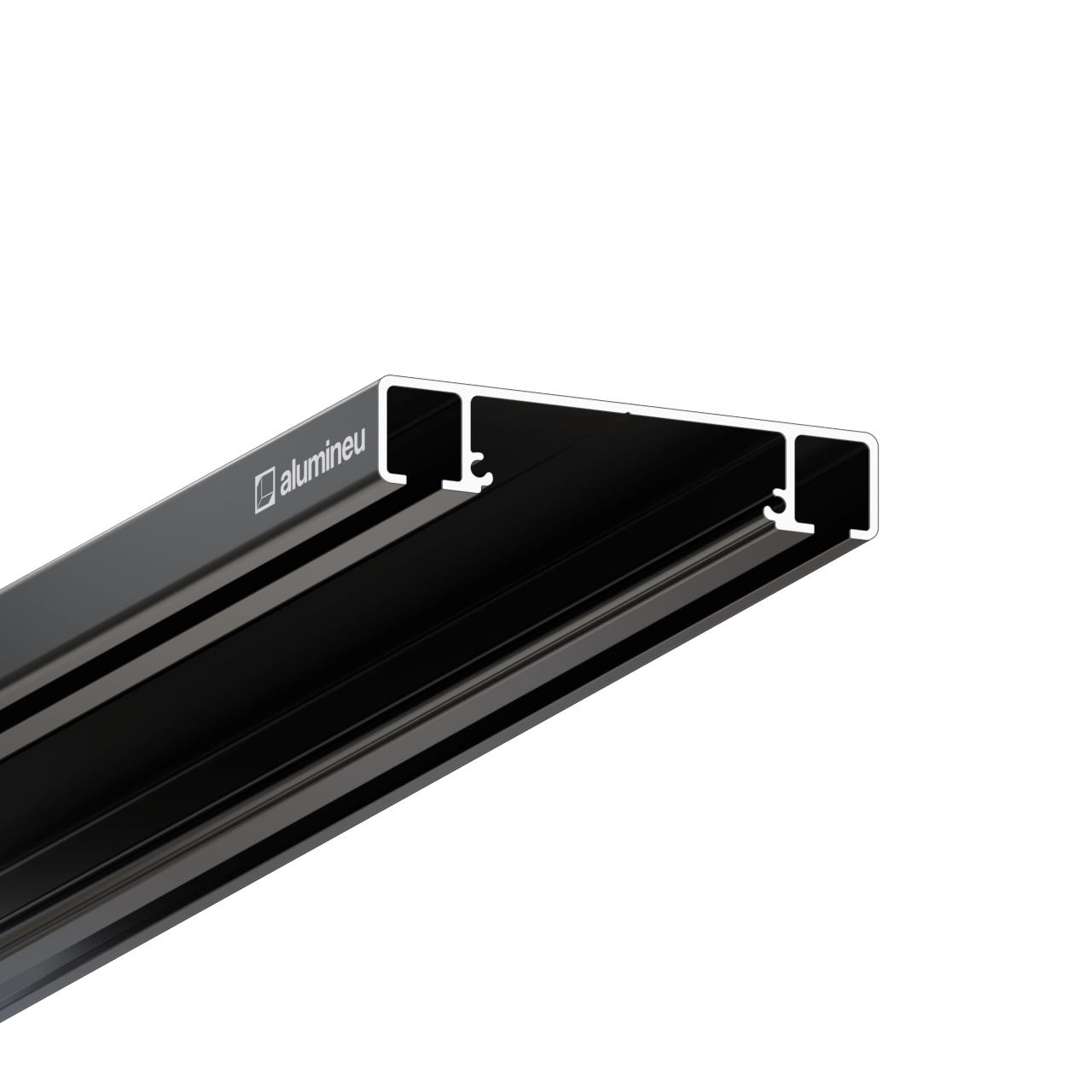

CURTINA X406 is an aluminum profile for concealed curtain niches with lighting and two grooves for curtains and drapes. It is designed for stretch ceilings with a harpoon membrane fastening system and side membrane insertion.

The profile includes guide channels and a dedicated groove for the DIFFUSY Y134 diffuser, making it suitable for refined backlit niche solutions.

  • Material: aluminum
  • Length: 3200 mm
  • Available finishes: white matte, black matte
  • Number of tracks: 2
  • Membrane attachment: harpoon

Profile details

Construction

  • Guide channels.
  • Groove for DIFFUSY Y134 diffuser.
  • Groove for LED strip installation.
  • Joining grooves.

Included accessories

  • CURTINA X406 profile
  • Self-tapping screws

Installation

Fastening

Mount the profile to the ceiling using self-tapping screws or anchors through mounting brackets. The spacing between fixing points must not exceed 1.5 m.

Ceiling membrane insertion

Insert the membrane using a standard straight spatula.

Ceiling membrane removal

The membrane can be removed without damage.

Applications

Designed for concealed curtain niches with backlighting.

Downloads

Catalog.pdf
