• Profile СURTINA X408
1 1

AluminUS

Profile СURTINA X408

Profile СURTINA X408

$272.00 USD
$272.00 USD
Sale Sold out
Color
Length

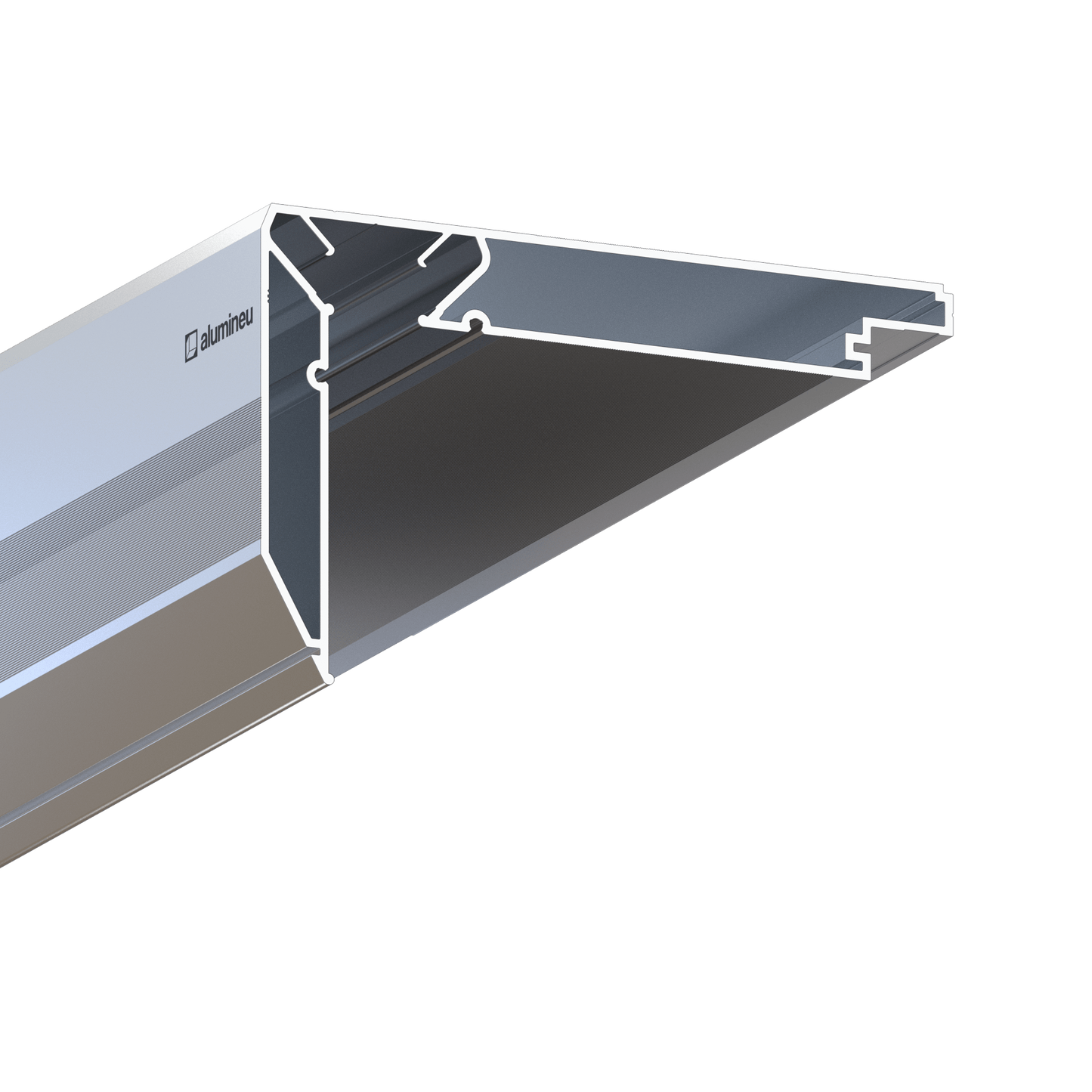

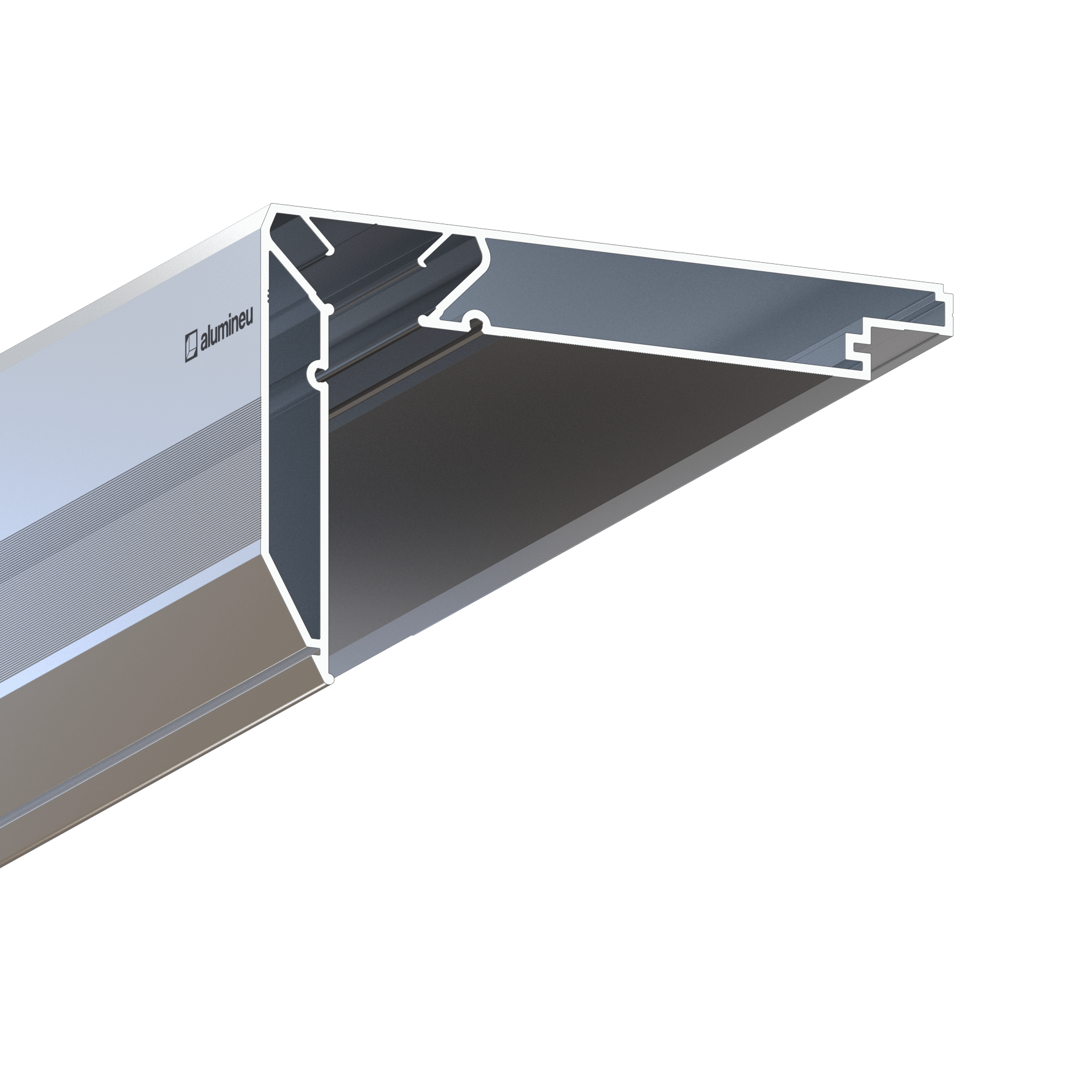

CURTINA X408 is an aluminum profile for concealed cornice niches with lighting and support for surface-mounted curtain systems. It is designed for stretch ceilings with a harpoon membrane fastening system.

The profile combines backlighting, surface-mounted cornice compatibility, and integrated technical slots for accessories and inserts.

  • Material: aluminum
  • Length: 2000 mm
  • Finish: unfinished
  • Membrane attachment: harpoon

Profile details

Construction

  • Angled grooves for harpoon fixation.
  • Groove for insert.
  • Port for a 2 mm rod.
  • Shelf for LED strip installation.
  • Ridges for surface-mounted cornices.
  • Groove for Flexy STANDART PLUS 60 extension strip.
  • Pocket for grilles.
  • Metalworking positioner.

Included accessories

  • CURTINA X408 profile
  • Joining rods, 2 mm diameter: 3 pieces per joint

Optional accessories

Mounting angle bracket, INSERTA Y008 separating insert, DIFFUSY Y114 light-diffusing screen, INSERTA Y015 light-diffusing insert, and CURTINA X407 profile.

Installation

Fastening

Fasten the profile to the ceiling using self-tapping screws or anchors through mounting angle brackets. The fixing spacing must not exceed 1.5 m.

Jointing

Create joints without transitions or visible gaps.

Ceiling membrane insertion

Insert the standard-cut membrane using a standard straight spatula.

Applications

Designed for cornice niches with lighting and surface-mounted curtain systems.

Downloads

Catalog.pdf

View full details
