Profile СURTINA X410

Profile СURTINA X410

$311.00 USD
$311.00 USD
Sale Sold out
Color
Length

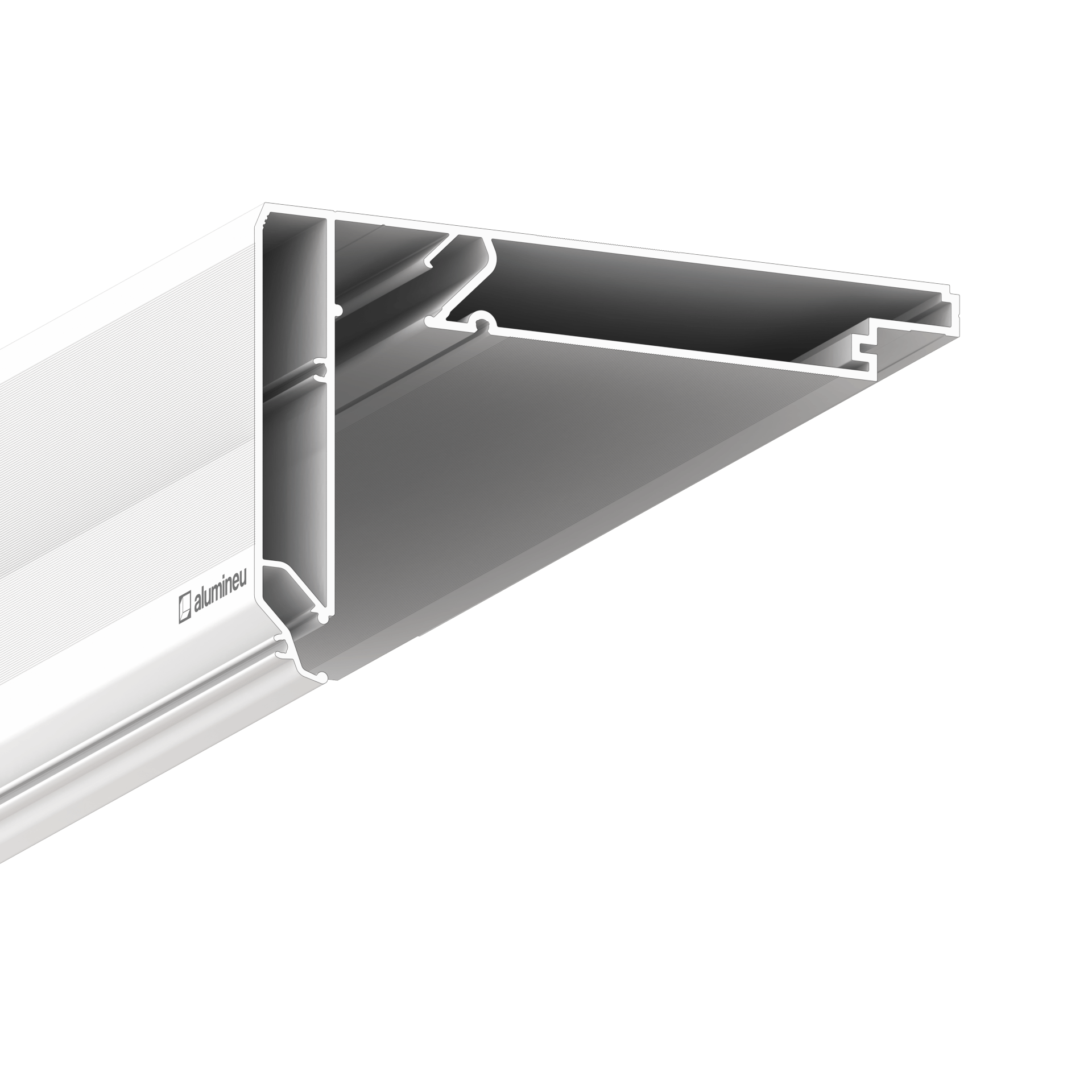

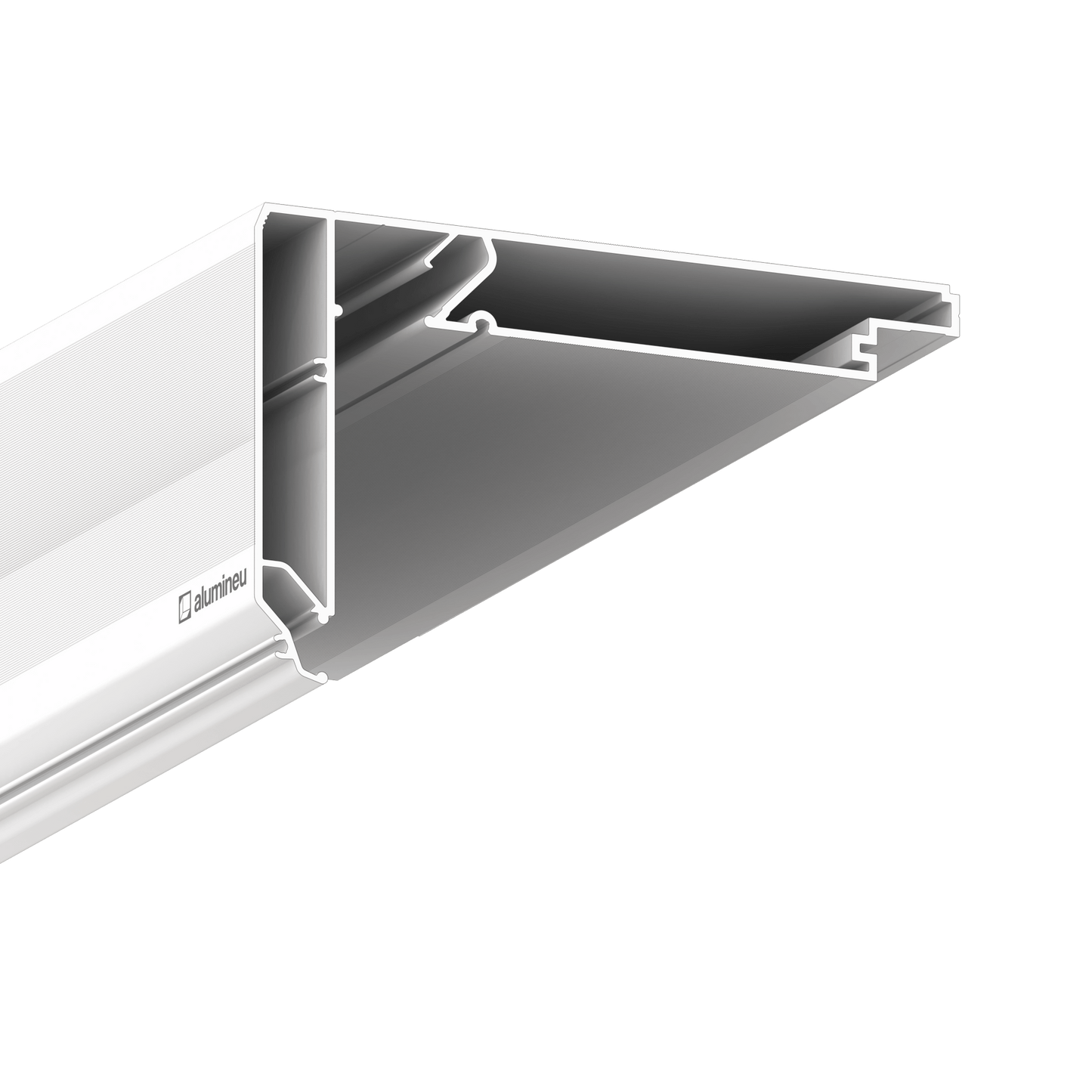

CURTINA X410 is an aluminum profile for straight curtain niches with lighting and subsequent installation of surface-mounted cornices. It is designed for stretch ceilings with a harpoon membrane fastening system.

The profile is intended for clean linear niche layouts where integrated lighting and mounted curtain hardware must work together.

  • Material: aluminum
  • Length: 2000 mm
  • Finish: white matte
  • Membrane attachment: harpoon

Profile details

Construction

  • Grooves for harpoon fixation.
  • Groove for insert.
  • Port for a 2 mm rod.
  • Shelf for LED strip installation.
  • Ridges for surface-mounted cornices.
  • Groove for Flexy STANDART PLUS 60 extension strip.
  • Pocket for grilles.
  • Metalworking positioner.

Included accessories

  • CURTINA X410 profile
  • Joining rods, 2 mm diameter: 3 pieces per joint

Optional accessories

Mounting angle bracket, INSERTA Y008 separating insert, DIFFUSY Y114 light-diffusing screen, INSERTA Y015 light-diffusing insert, and CURTINA X407 profile.

Installation

Fastening

Fasten the profile to the ceiling using self-tapping screws or anchors through mounting angle brackets. The fixing spacing must not exceed 1.5 m.

Jointing

Create joints without transitions or visible gaps.

Ceiling membrane insertion

Insert the standard-cut membrane using a standard straight spatula.

Applications

Designed for straight curtain niches with lighting and surface-mounted cornices.

Downloads

Catalog.pdf
