Profile FLOATIA X301
Profile FLOATIA X301
Couldn't load pickup availability

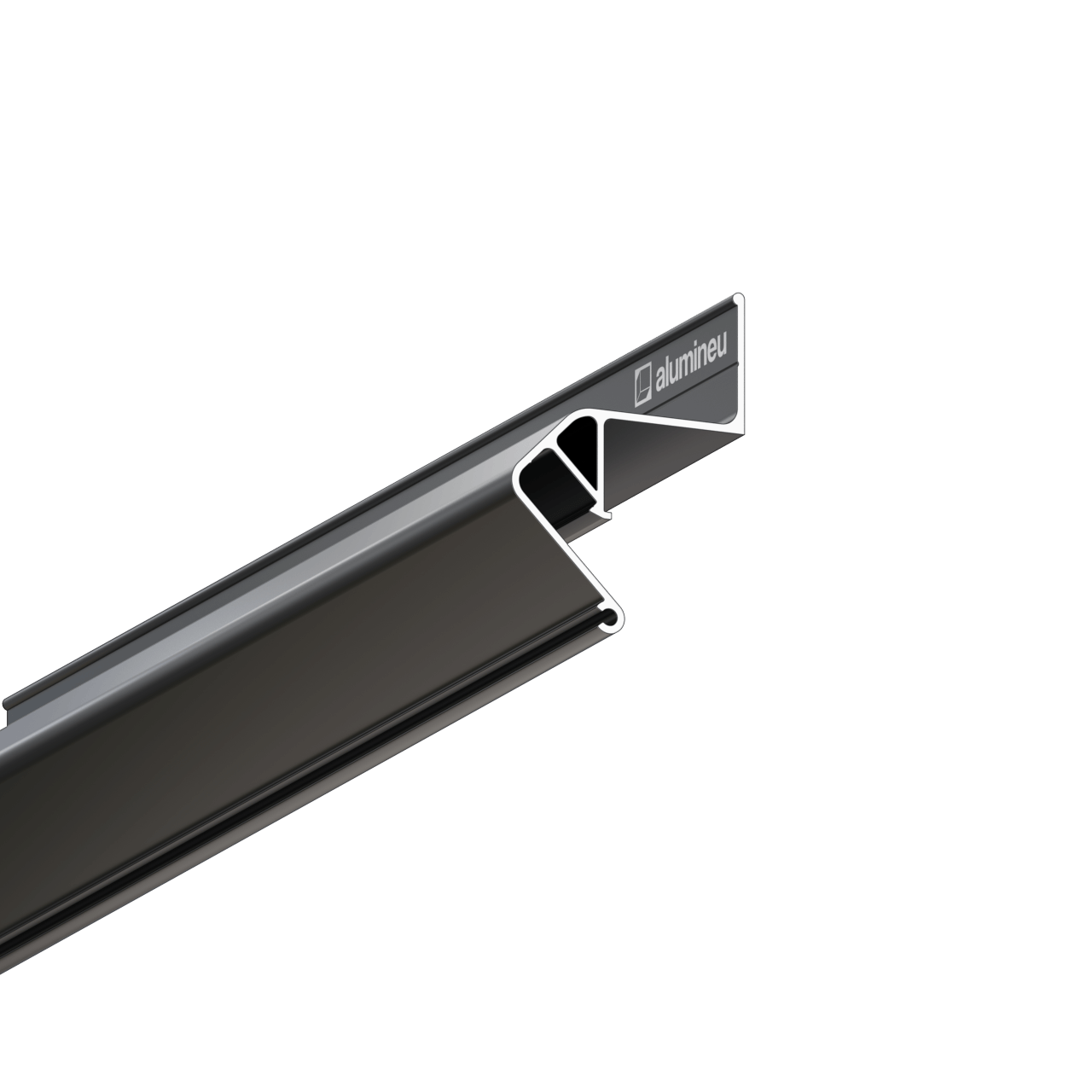

FLOATIA X301 is a wall-mounted floating profile for stretch ceilings with a harpoon membrane fastening system. It creates a 15 mm floating gap and includes an LED strip shelf (without a diffuser).
Designed for backlit floating ceiling effects with service-friendly access to the LED channel.
- Material: aluminum
- Length: 2000 mm
- Available finishes: unfinished, black matte, white matte
- Floating gap: 15 mm
- Membrane attachment: harpoon
Profile details
Profile details
Construction
- Joining groove.
- Angled groove for harpoon fixation.
- Marking for wall mounting.
- Shelf for LED strip installation.
Included accessories
- FLOATIA X301 profile
- Joining rods, 2 mm diameter: 1 piece per joint
Installation
Installation
Fastening
Fasten to the wall using self-tapping screws or anchors. The fixing spacing must not exceed 300 mm.
Not recommended for rooms with glossy or mirrored walls.
Jointing
Create joints without transitions or visible gaps using a 2 mm rod.
Ceiling membrane insertion
Insert the standard-cut membrane using a spatula with a working part at least 35 mm long and angled at 75 to 90 degrees.
Ceiling membrane removal
The membrane can be removed without damage.
LED strip
Provides easy access for LED replacement without removing the membrane.
Applications
Applications
Designed for floating stretch ceilings with backlighting.
