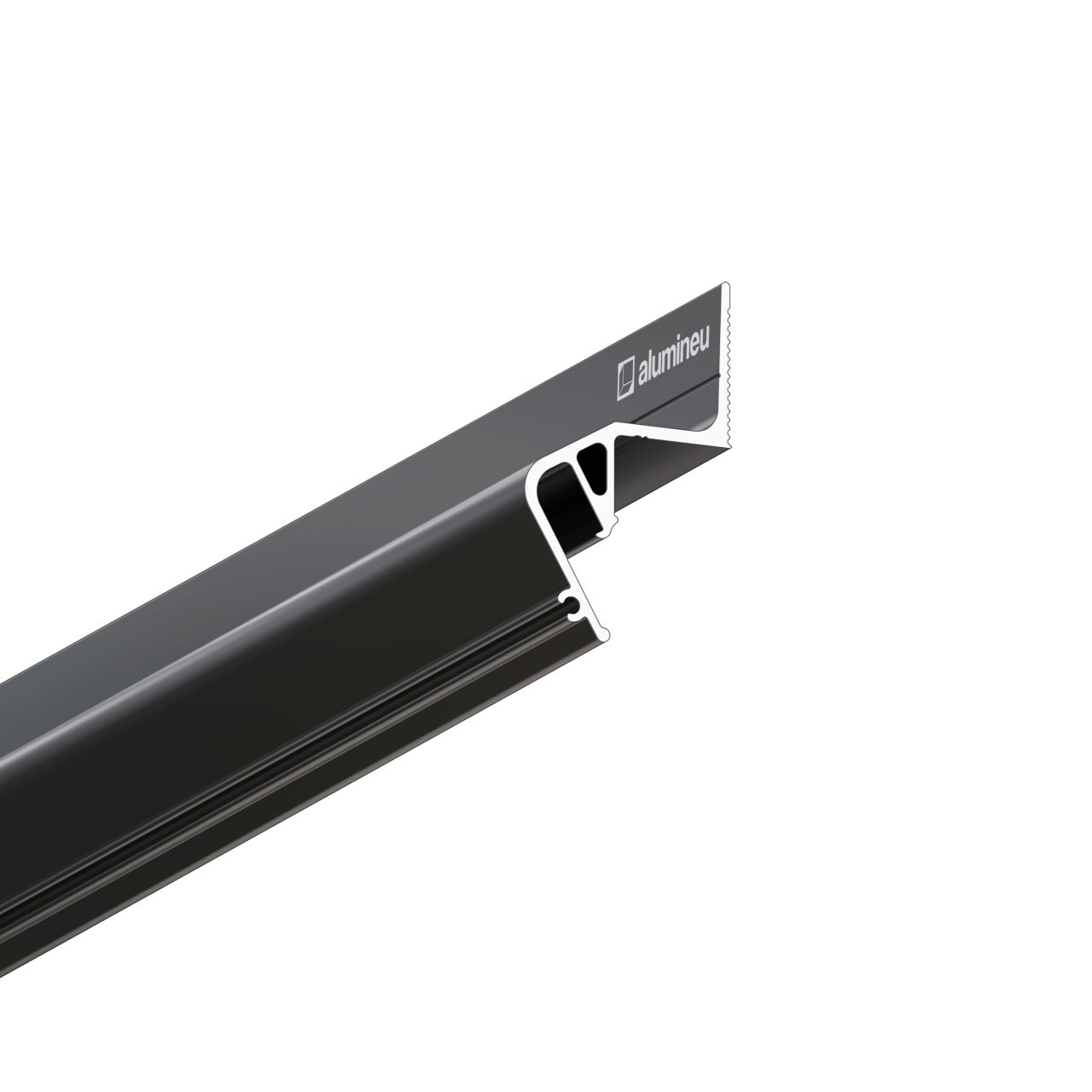

Profile FLOATIA X302
Profile FLOATIA X302
Couldn't load pickup availability
FLOATIA X302 is a wall-mounted floating profile for stretch ceilings with a harpoon membrane fastening system. It creates a 15 mm floating gap and includes an LED strip shelf plus a mount for a light-diffusing insert.
- Material: aluminum
- Length: 2000 mm
- Available finishes: unfinished, black matte, white matte
- Floating gap: 15 mm
- Membrane attachment: harpoon
Profile details
Profile details
Construction
- Joining groove.
- Angled groove for harpoon fixation.
- Marking for wall mounting.
- Shelf for LED strip installation.
Included accessories
- FLOATIA X302 profile
- Joining rods, 2 mm diameter: 1 piece per joint
Optional accessories
INSERTA Y015 f insert.
Installation
Installation
Fastening
Fasten to the wall using self-tapping screws or anchors. The fixing spacing must not exceed 300 mm.
Jointing
Create joints without transitions or visible gaps using a 2 mm rod.
Ceiling membrane insertion
Insert the standard-cut membrane using a spatula with a working part at least 35 mm long and angled at 75 to 90 degrees.
Ceiling membrane removal
The membrane can be removed without damage.
LED strip
Closed with a light-diffusing insert and provides easy access for LED replacement without removing the membrane.
Applications
Applications
Designed for floating stretch ceilings with backlighting.
