AluminUS

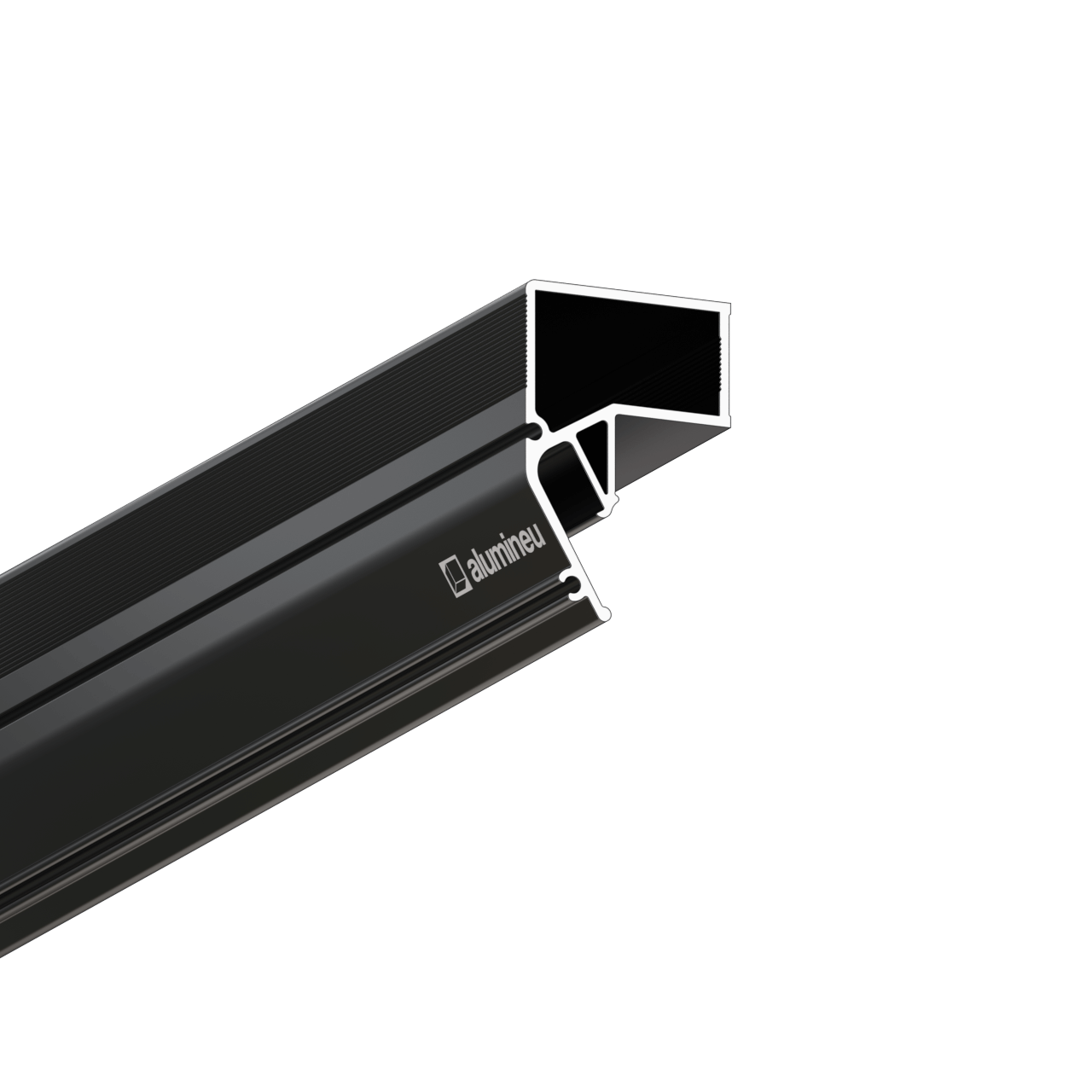

Profile FLOATIA X303

Profile FLOATIA X303

Regular price $52.00 USD
Regular price Sale price $52.00 USD
Sale Sold out
Color

FLOATIA X303 is a ceiling-mounted floating profile for stretch ceilings with a harpoon membrane fastening system. It creates a 15 mm floating gap and includes an LED strip shelf plus a mount for a light-diffusing insert.

  • Material: aluminum
  • Length: 2000 mm
  • Available finishes: unfinished, black matte, white matte
  • Floating gap: 15 mm
  • Membrane attachment: harpoon

Profile details

Construction

  • Joining groove.
  • Angled groove for harpoon fixation.
  • Marking for wall mounting.
  • Shelf for LED strip installation.

Included accessories

  • FLOATIA X303 profile
  • Joining rods, 2 mm diameter: 1 piece per joint

Optional accessories

INSERTA Y015 f insert.

Installation

Fastening

Fasten to the ceiling using self-tapping screws or anchors, either directly or through mounting angle brackets. The fixing spacing must not exceed 300 mm.

Jointing

Create joints without transitions or visible gaps using a 2 mm rod.

Ceiling membrane insertion

Insert the standard-cut membrane using a spatula with a working part at least 35 mm long and angled at 75 to 90 degrees.

Ceiling membrane removal

The membrane can be removed without damage.

LED strip

Closed with a light-diffusing insert and provides easy access for LED replacement without removing the membrane.

Applications

Designed for floating stretch ceilings with backlighting.
