AluminUS

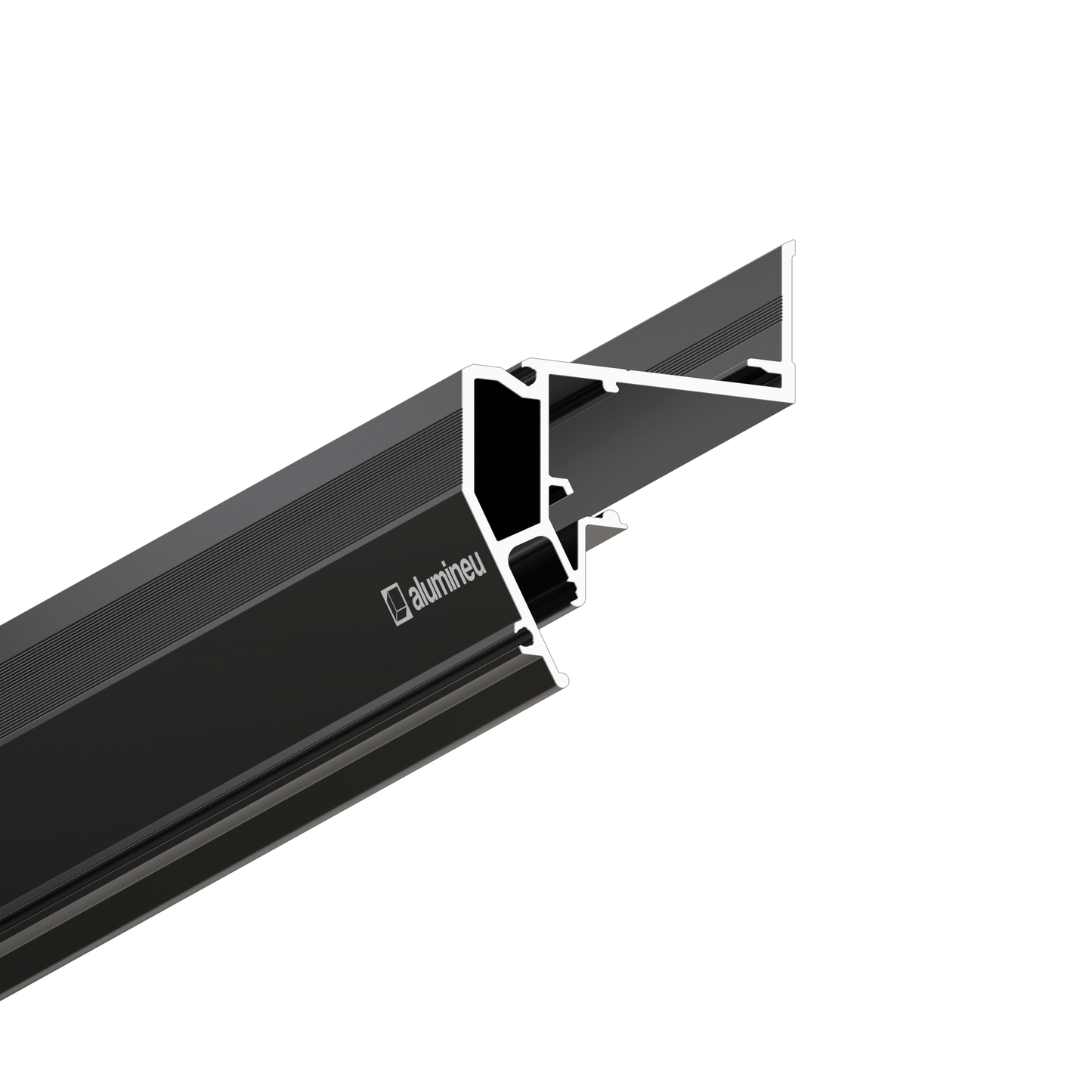

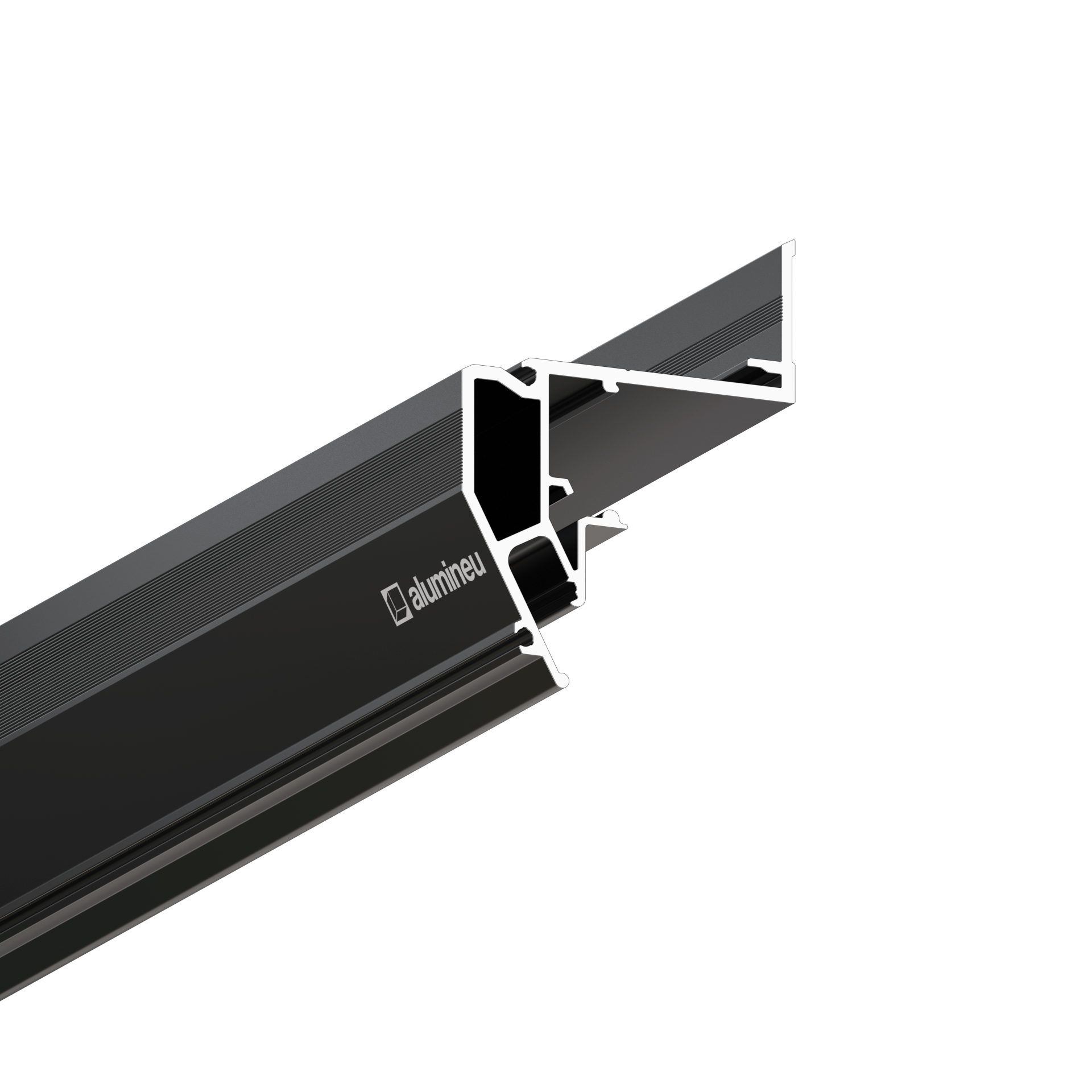

Profile FLOATIA X304
Profile FLOATIA X304
Regular price
$78.00 USD
Regular price
Sale price
$78.00 USD
Unit price
/
per
Couldn't load pickup availability
FLOATIA X304 is a floating profile for stretch ceilings with a harpoon membrane fastening system. It creates a wider 29 mm floating gap and supports a light-diffusing insert.
- Material: aluminum
- Length: 2000 mm
- Finish: black matte
- Floating gap: 29 mm
- Membrane attachment: harpoon
Profile details
Profile details
Construction
- Marking for wall mounting.
- Groove for INSERTA Y015 insert.
- Shelf for LED strip installation.
- Angled groove for harpoon fixation.
- Joining groove.
Included accessories
- FLOATIA X304 profile
- Joining rods, 2 mm diameter: 1 piece per joint
Optional accessories
INSERTA Y015 insert.
Installation
Installation
Fastening
Fasten to the wall using self-tapping screws or anchors. The fixing spacing must not exceed 300 mm.
Jointing
Create joints without transitions or visible gaps using a 2 mm rod.
Ceiling membrane insertion
Insert the standard-cut membrane using a spatula with a working part at least 35 mm long and angled at 75 to 90 degrees.
Ceiling membrane removal
The membrane can be removed without damage.
LED strip
Closed with a light-diffusing insert and provides easy access for LED replacement without removing the membrane.
Applications
Applications
Designed for floating stretch ceilings with backlighting.
Downloads
Downloads
