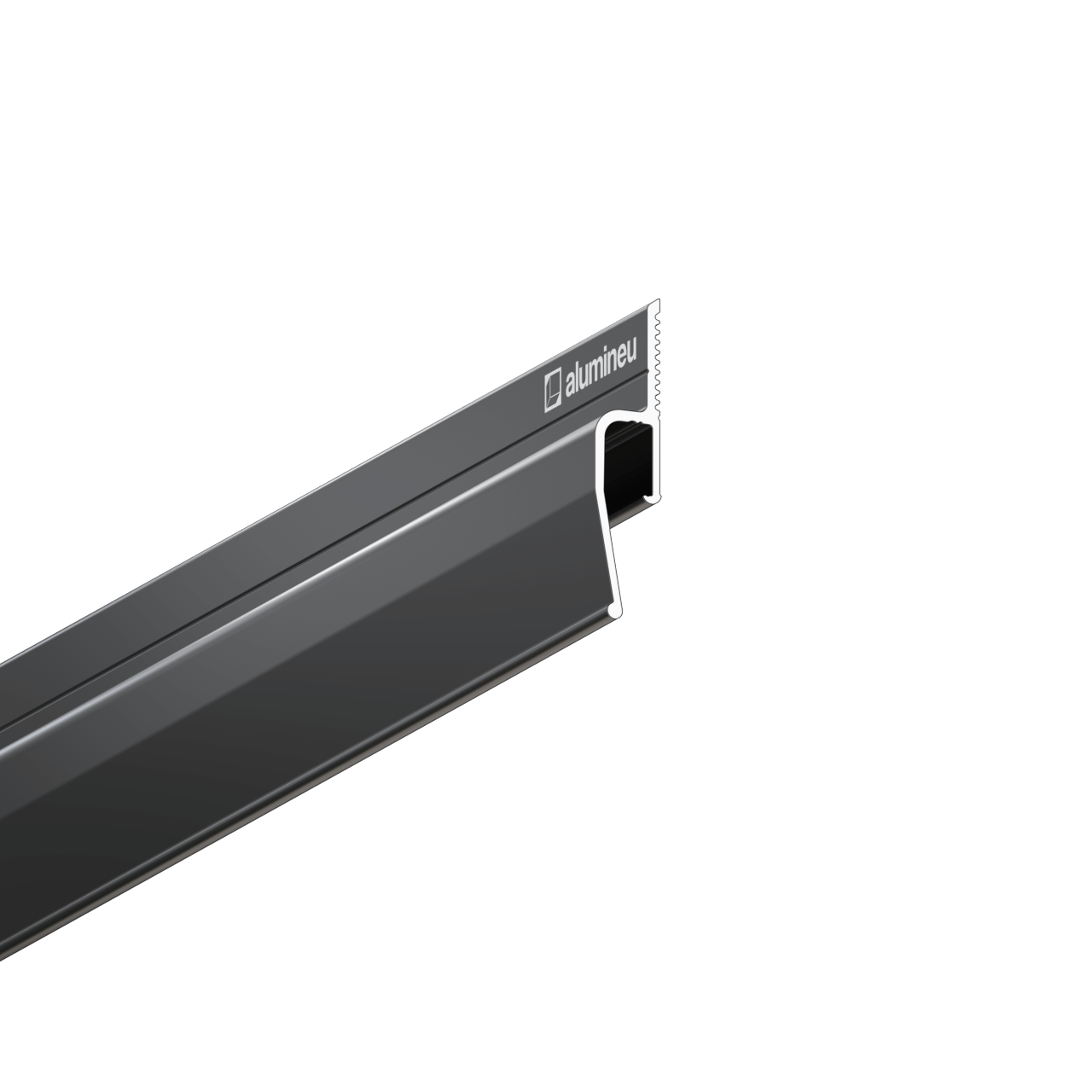

Profile INVISIA X201
Profile INVISIA X201
Couldn't load pickup availability
INVISIA X201 is a wall-mounted shadow gap profile for stretch ceilings with a harpoon membrane fastening system. It creates a clean 5 mm shadow reveal for a refined wall-to-ceiling transition.
The profile is designed for adhesive-assisted wall installation and offers secure membrane fixation together with precise shadow-gap geometry.
- Material: aluminum
- Length: 2000 mm
- Finish: black matte
- Shadow gap: 5 mm
- Membrane attachment: harpoon
Profile details
Profile details
Construction
- Longitudinal grooves to increase the adhesive contact area.
- Marking for wall mounting.
- Vertical groove for harpoon fixation.
Installation
Installation
Fastening
Fasten the profile to the wall using self-tapping screws or anchors. The fixing spacing must not exceed 150 mm.
For walls finished with porcelain tiles, mirrors, or other fragile surfaces, adhesive mounting may be used.
Jointing
Create joints without transitions or visible gaps using a 15 mm band and two-component adhesive.
Ceiling membrane insertion
Insert the standard-cut membrane using a spatula with a working part at least 35 mm long and angled at 15 to 20 degrees.
Ceiling membrane removal
Lift the harpoon near the nearest corner with a hook and remove the membrane.
Applications
Applications
Designed for stretch ceilings with a shadow gap effect.
