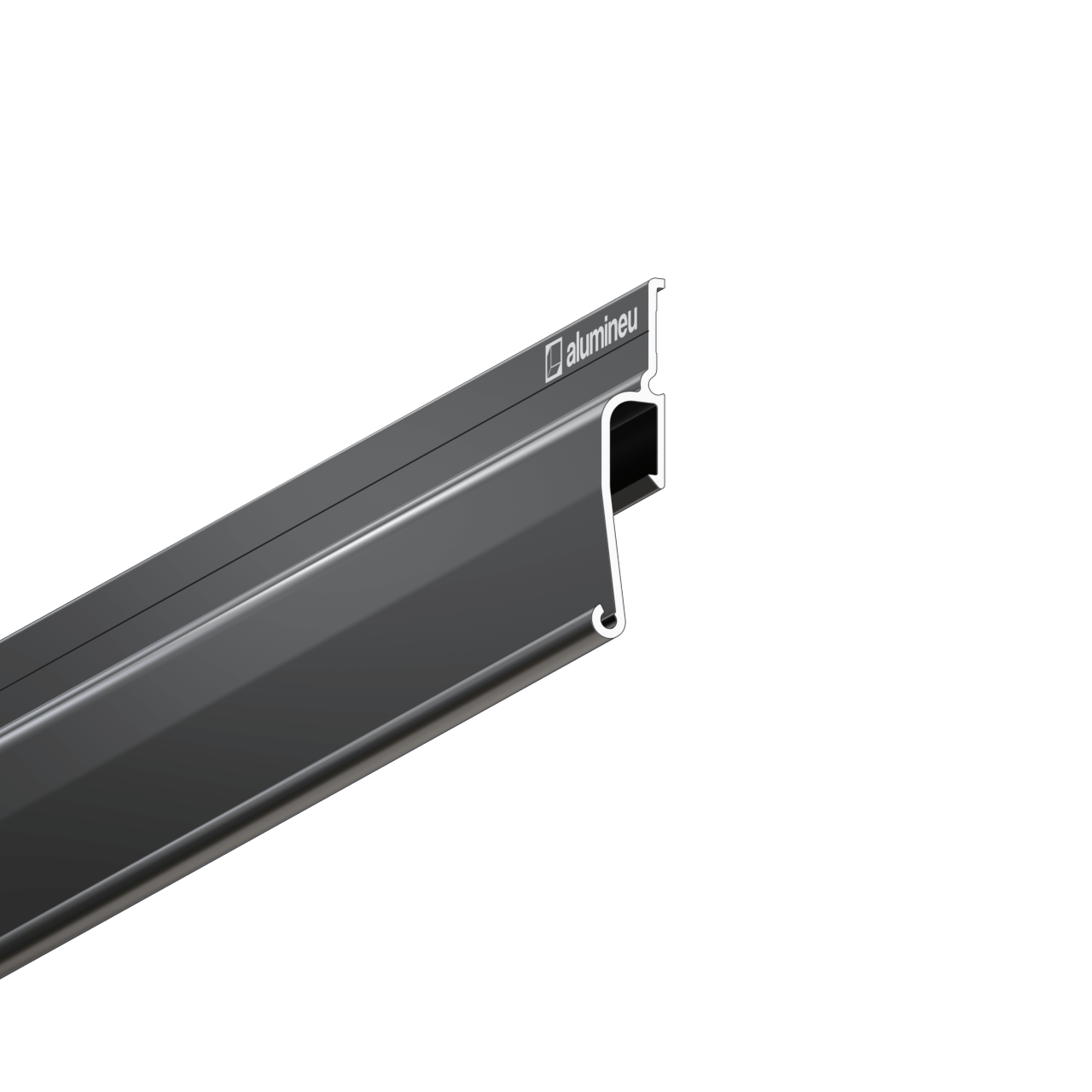

Profile INVISIA X202
Profile INVISIA X202
Couldn't load pickup availability
INVISIA X202 is a wall-mounted shadow gap profile for stretch ceilings with a harpoon membrane fastening system. It creates a 5 mm shadow reveal while supporting neat linear joints.
The profile is suitable for clean perimeter detailing and can be installed mechanically or with adhesive on fragile wall finishes.
- Material: aluminum
- Length: 2000 mm
- Available finishes: unfinished, black matte
- Shadow gap: 5 mm
- Membrane attachment: harpoon
Profile details
Profile details
Construction
- Joining grooves.
- Vertical groove for harpoon fixation.
- Marking for wall mounting.
Included accessories
- INVISIA X202 profile
- Joining rods, 2 mm diameter: 2 pieces per joint
Installation
Installation
Fastening
Fasten the profile to the wall using self-tapping screws or anchors. The fixing spacing must not exceed 150 mm.
For walls finished with porcelain tiles, mirrors, or other fragile surfaces, adhesive mounting may be used.
Jointing
Create joints without a step or visible gap using a 2 mm joining rod.
Ceiling membrane insertion
Insert the standard-cut membrane using a spatula with a working part at least 35 mm long and angled at 15 to 20 degrees.
Ceiling membrane removal
Lift the harpoon near the nearest corner with a hook and remove the membrane.
Applications
Applications
Designed for stretch ceilings with a shadow gap effect.
