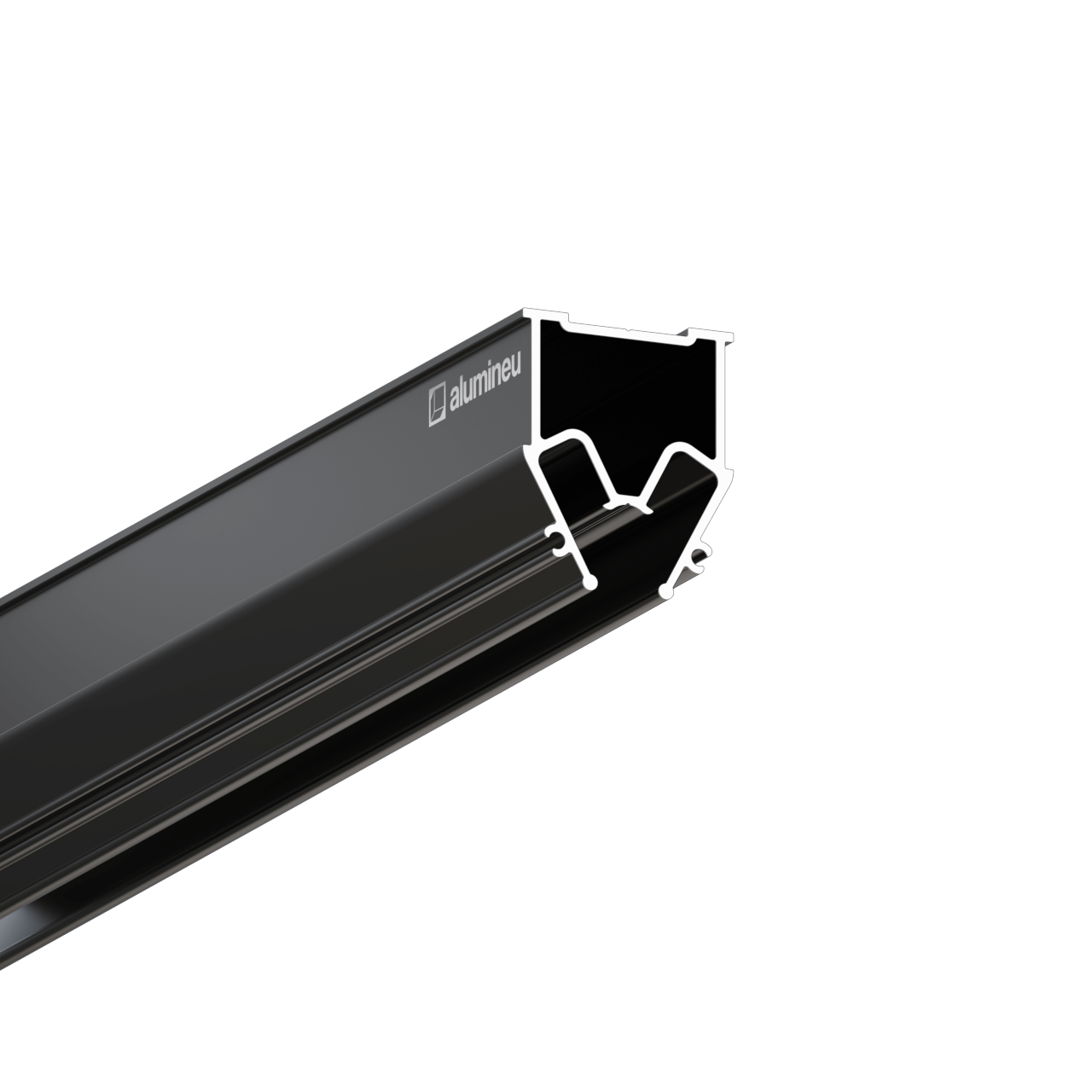

INVISIA X204 is a dividing shadow gap profile for stretch ceilings with a harpoon membrane fastening system. It is intended for sloped ceilings, attic applications, and for dividing the membrane into multiple segments without a separate insert.
The profile combines a 7.7 mm shadow reveal with jointing capability for clean multi-plane ceiling compositions.
- Material: aluminum
- Length: 2000 mm
- Finish: unfinished
- Shadow gap: 7.7 mm
- Membrane attachment: harpoon
Profile details
Profile details
Construction
- Joining grooves.
- Angled grooves for harpoon fixation.
- Grooves for the connecting band.
Included accessories
- INVISIA X204 profile
- Cut connecting band: 2 pieces per joint
- Joining rods, 2 mm diameter: 2 pieces per joint
Installation
Installation
Fastening
Fasten the profile to the ceiling using self-tapping screws or anchors through mounting angle brackets. The fixing spacing must not exceed 1 m.
Jointing
Create joints without transitions or visible gaps using a 2 mm rod and a 15 mm connecting band.
Ceiling membrane insertion
Insert the standard-cut membrane using a straight standard spatula.
Ceiling membrane removal
The membrane can be removed without damage.
Applications
Applications
Designed for sloped ceilings, attic applications, and dividing membrane surfaces into multiple segments without a separating insert.
