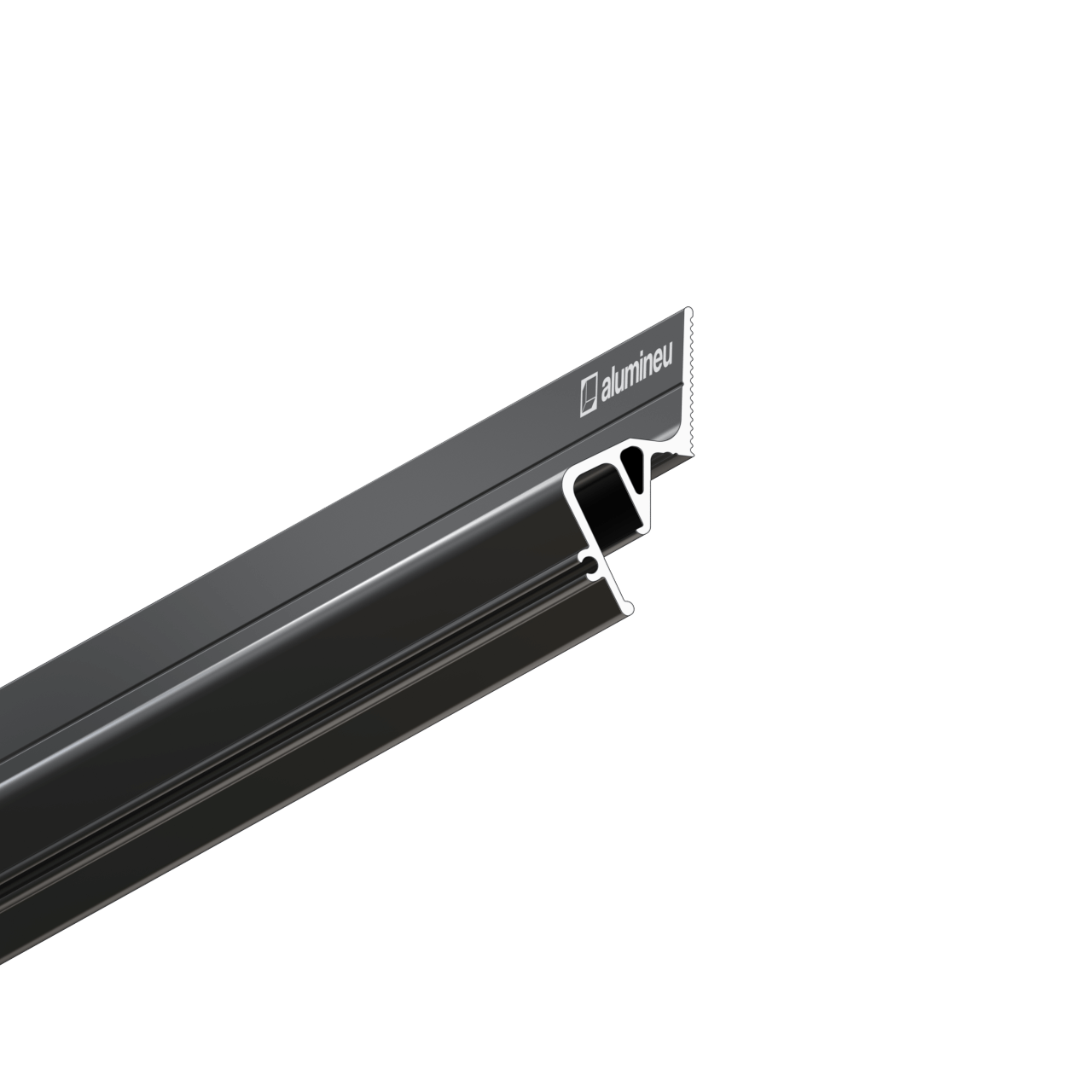

Profile INVISIA X205
Profile INVISIA X205
Couldn't load pickup availability
INVISIA X205 is a wall-mounted shadow gap profile for stretch ceilings with a harpoon membrane fastening system. It provides a 7.7 mm reveal and is intended for clean perimeter detailing.
The profile supports both mechanical fastening and adhesive mounting on delicate wall finishes, while allowing membrane removal without damage.
- Material: aluminum
- Length: 2000 mm
- Finish: black matte
- Shadow gap: 7.7 mm
- Membrane attachment: harpoon
Profile details
Profile details
Construction
- Longitudinal cuts to increase adhesive contact area.
- Wall-mounting marking.
- Angled groove for harpoon fixation.
- Joining groove.
Included accessories
- INVISIA X205 profile
- Joining rods, 2 mm diameter: 1 piece per joint
Installation
Installation
Fastening
Fasten the profile to the wall using self-tapping screws or anchors. The fixing spacing should not exceed 300 to 350 mm.
For walls finished with porcelain tiles, mirrors, or other fragile surfaces, adhesive mounting may be used.
Jointing
Create joints without transitions or visible gaps using a 2 mm rod.
Ceiling membrane insertion
Insert the standard-cut membrane using a spatula with a working part at least 35 mm long and angled at 15 to 45 degrees.
Ceiling membrane removal
Insert the spatula between the harpoon and the profile locking lip, heat the harpoon, press on the membrane, and move the spatula along the profile. The membrane can be removed without damage and reused.
Applications
Applications
Designed for ceilings with a shadow gap effect.
