Profile INVISIA X206
Profile INVISIA X206
Couldn't load pickup availability

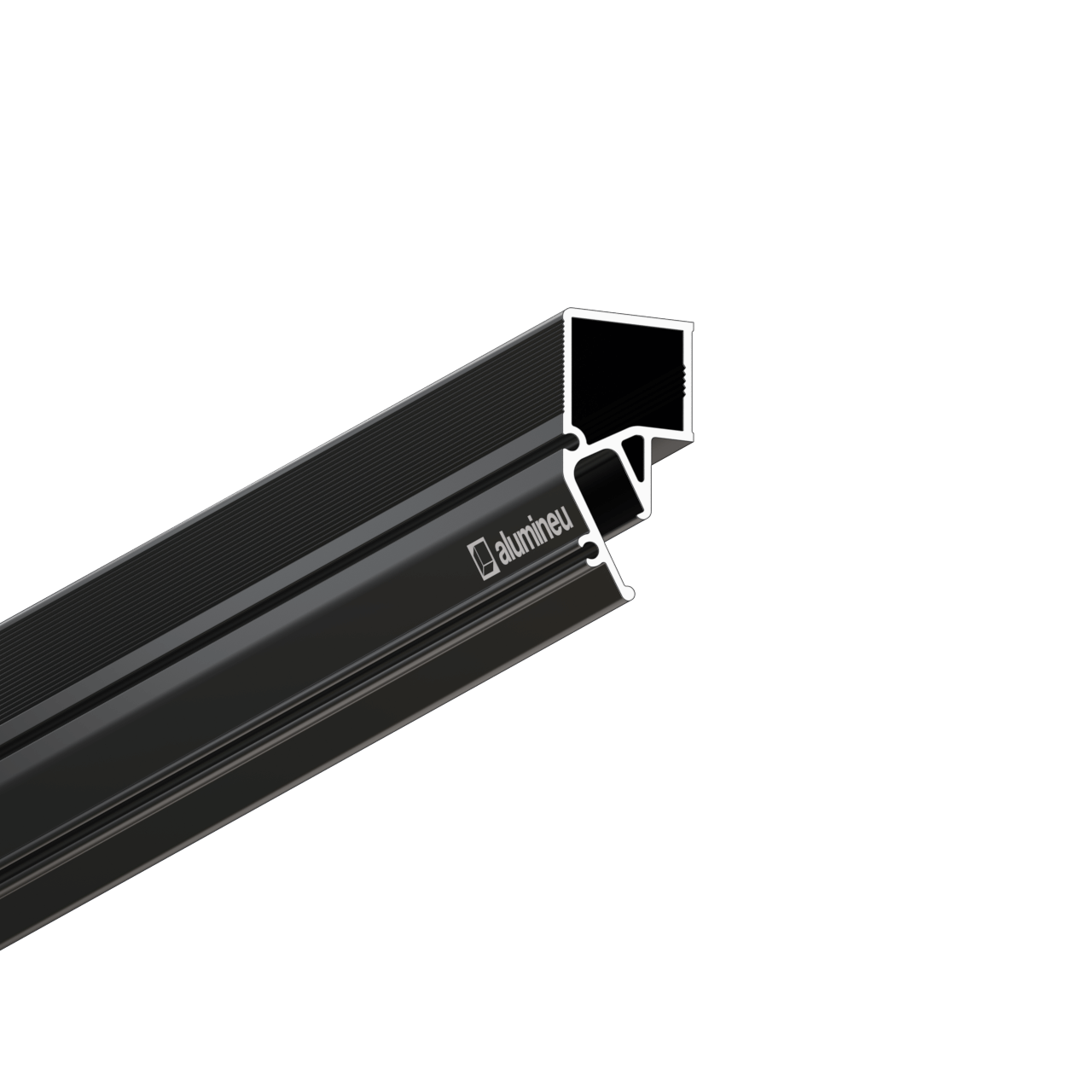

INVISIA X206 is a ceiling-mounted shadow gap profile for stretch ceilings with a harpoon membrane fastening system. It creates a 7.7 mm reveal and is especially useful where wall attachment is not possible.
The profile is suitable for bypassing complex walls while preserving a clean shadow-gap perimeter.
- Material: aluminum
- Length: 2000 mm
- Finish: black matte
- Shadow gap: 7.7 mm
- Membrane attachment: harpoon
Profile details
Profile details
Construction
- Marking for self-tapping screw installation.
- Angled groove for harpoon fixation.
- Joining groove.
Included accessories
- INVISIA X206 profile
- Joining rods, 2 mm diameter: 1 piece per joint
Optional accessories
Mounting angle bracket.
Installation
Installation
Fastening
Fasten the profile to the ceiling using self-tapping screws or anchors through mounting angle brackets. The fixing spacing should not exceed 300 to 350 mm.
Jointing
Create joints without transitions or visible gaps using a 2 mm rod.
Ceiling membrane insertion
Insert the standard-cut membrane using a spatula with a working part at least 35 mm long and angled at 15 to 45 degrees.
Ceiling membrane removal
Insert the spatula between the harpoon and the profile locking lip, heat the harpoon, press on the membrane, and move the spatula along the profile. The membrane can be removed without damage and reused.
Applications
Applications
Designed for ceilings with a shadow gap effect and for bypassing complex walls where wall attachment is not possible.
