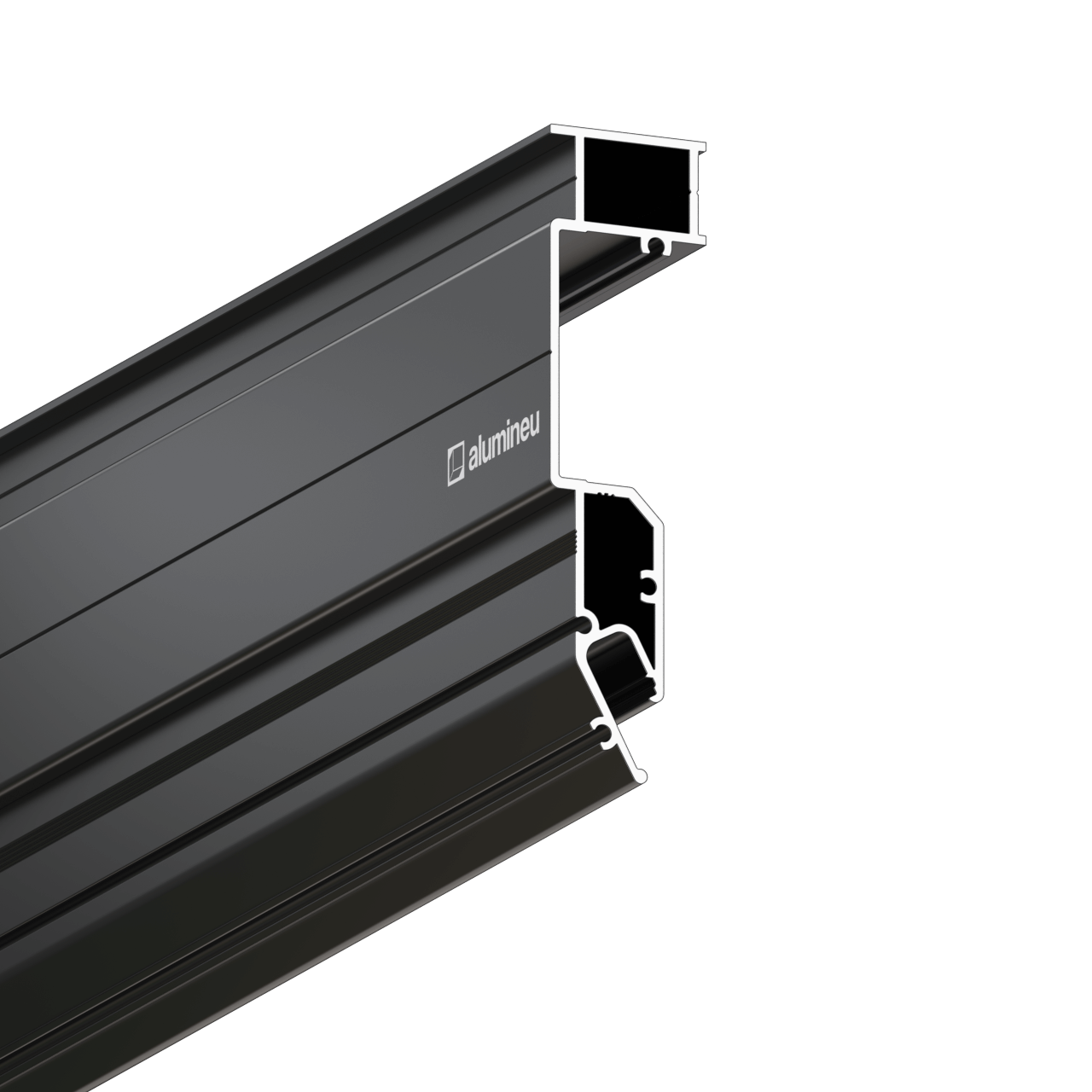

INVISIA X207 is a wall-mounted shadow gap profile with harpoon membrane fixation for stretch ceiling ventilation applications. It integrates a shelf for the duct while preserving a clean shadow-gap appearance.
The profile is intended for ceiling systems that combine ventilation routing with architectural perimeter detailing.
- Material: aluminum
- Length: 2000 mm
- Finish: black matte
- Shadow gap: 7.7 mm
- Membrane attachment: harpoon
Profile details
Profile details
Construction
- Shelf for the duct.
- Angled groove for harpoon fixation.
- Joining grooves.
- Marking for wall mounting.
Included accessories
- INVISIA X207 profile
- Cut connecting band: 2 pieces per joint
- Joining rods, 2 mm diameter: 4 pieces per joint
Installation
Installation
Fastening
Fasten the profile to the ceiling using self-tapping screws or anchors through mounting angle brackets. The fixing spacing should not exceed 300 to 350 mm.
Jointing
Create joints without transitions or visible gaps using a 2 mm rod and a 15 mm connecting band.
Ceiling membrane insertion
Insert the standard-cut membrane using a spatula with a working part at least 35 mm long and angled at 15 to 45 degrees.
Ceiling membrane removal
Insert the spatula between the harpoon and the profile locking lip, heat the harpoon, press on the membrane, and move the spatula along the profile. The membrane can be removed without damage and reused.
Applications
Applications
Designed for stretch ceilings with a shadow gap effect in ventilation-integrated layouts.
