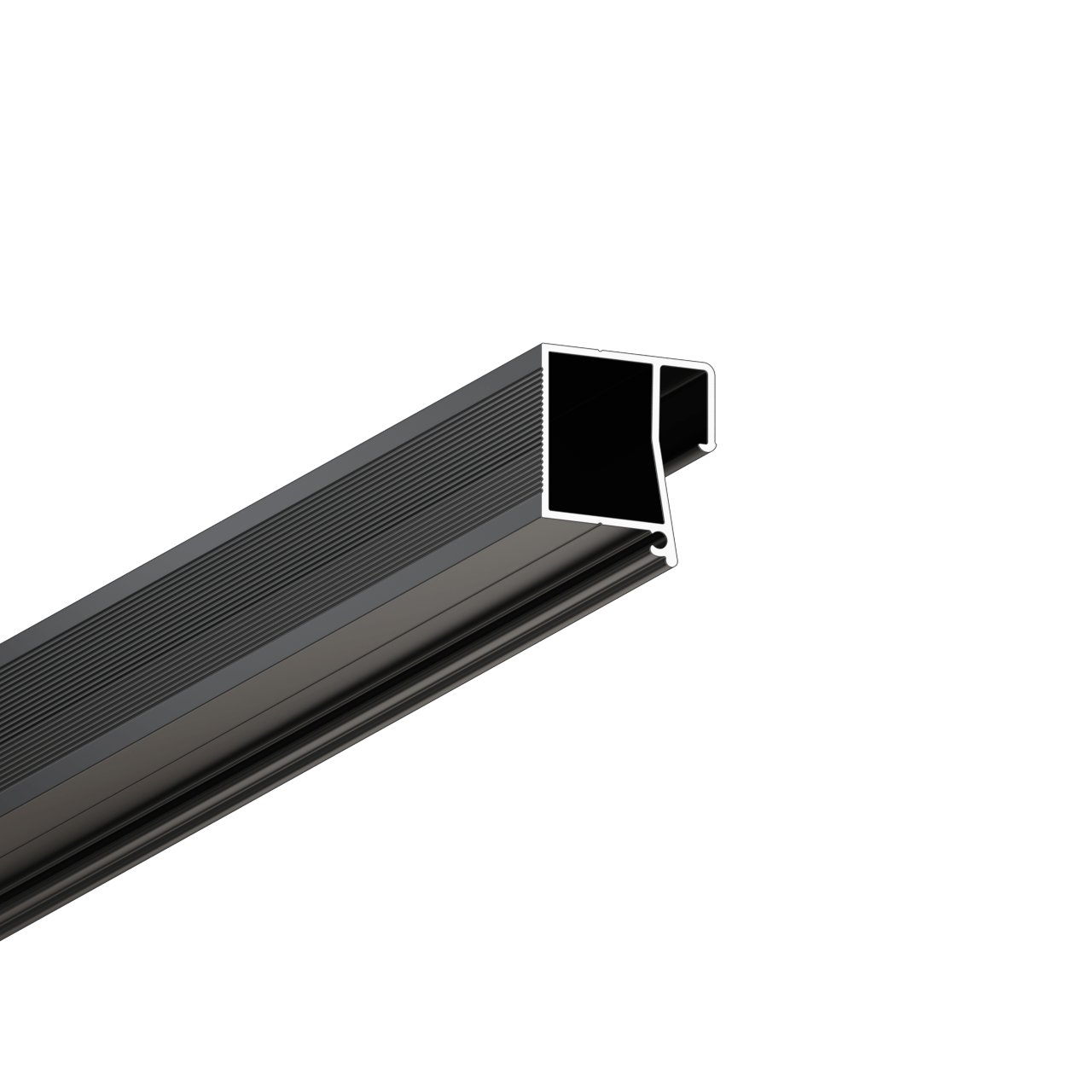

Profile INVISIA X208
Profile INVISIA X208
Couldn't load pickup availability
INVISIA X208 is a shadow gap profile for stretch ceilings with a harpoon membrane fastening system. It is intended for bypassing complex walls while preserving a clean 5 mm shadow reveal.
The profile is ceiling-mounted and suited for conditions where direct wall attachment is difficult or impossible.
- Material: aluminum
- Length: 2000 mm
- Finish: black matte
- Shadow gap: 5 mm
- Membrane attachment: harpoon
Profile details
Profile details
Construction
- Joining groove.
- Vertical groove for harpoon fixation.
Included accessories
- INVISIA X208 profile
- Cut connecting band: 1 piece per joint
- Joining rods, 2 mm diameter: 1 piece per joint
Optional accessories
Mounting angle bracket.
Installation
Installation
Fastening
Fasten the profile to the ceiling using self-tapping screws or anchors through mounting angle brackets. The fixing spacing should not exceed 300 to 350 mm.
Jointing
Create joints without transitions or visible gaps using a 2 mm rod and a 15 mm connecting band.
Ceiling membrane insertion
Insert the standard-cut membrane using a spatula with a working part at least 35 mm long and angled at 15 to 45 degrees.
Ceiling membrane removal
The membrane can be removed without damage.
Applications
Applications
Designed for ceilings with a shadow gap effect and for bypassing complex walls where attachment is not possible.
