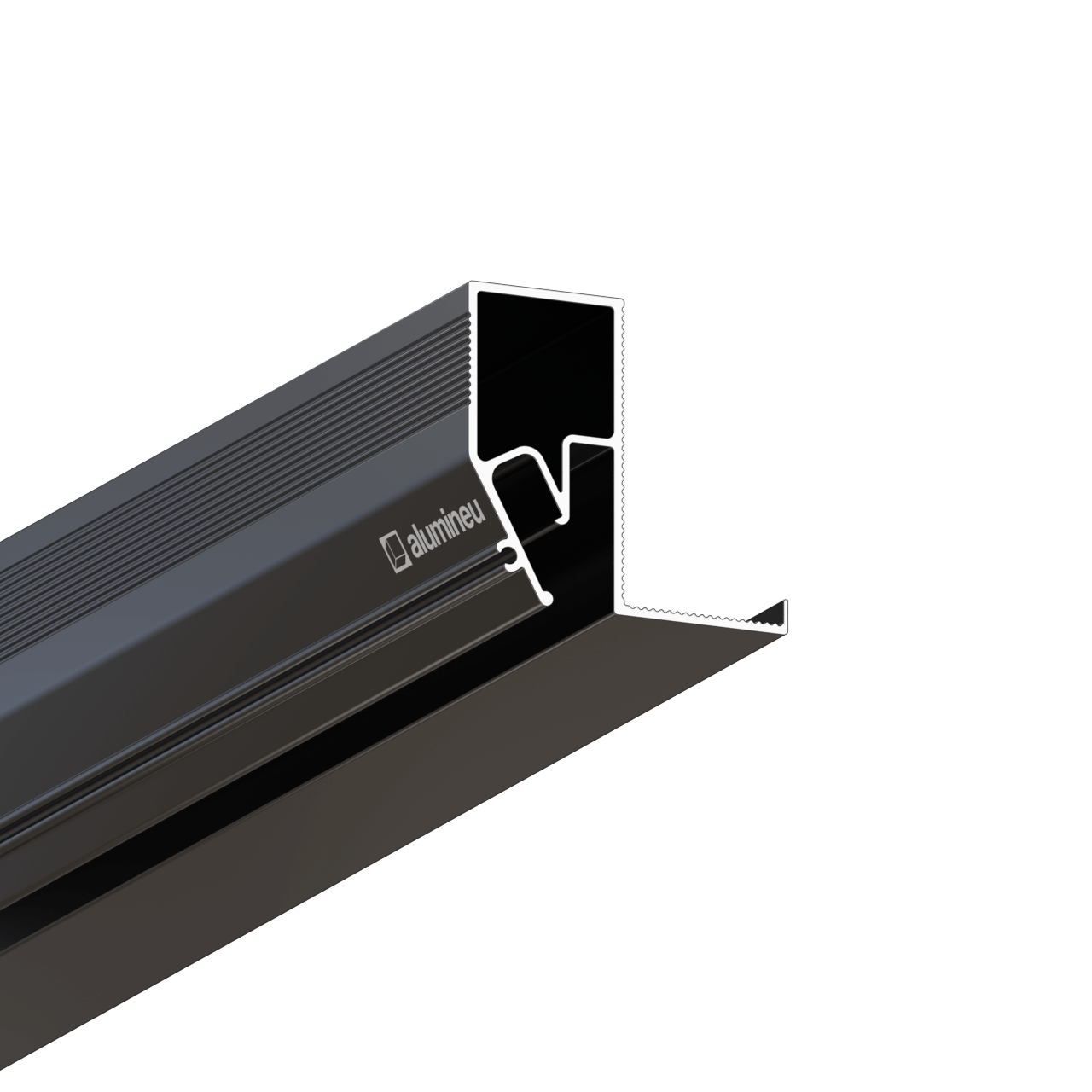

Profile INVISIA X209
Profile INVISIA X209
Couldn't load pickup availability
INVISIA X209 is a shadow gap profile for stretch ceilings with a harpoon membrane fastening system. It is designed for bypassing stair openings and roof windows while preserving a neat perimeter reveal.
The profile supports mounting to sloped window areas and is suitable for detailed attic and stairwell conditions.
- Material: aluminum
- Length: 2000 mm
- Available finishes: white matte, black matte
- Shadow gap: 7.7 mm
- Membrane attachment: harpoon
Profile details
Profile details
Construction
- Joining groove.
- Angled groove for harpoon fixation.
- Marking for self-tapping screw installation.
- Notches to improve adhesion when used with plaster or putty finishes.
Included accessories
- INVISIA X209 profile
- Cut connecting band: 1 piece per joint
- Joining rods, 2 mm diameter: 1 piece per joint
Optional accessories
Mounting angle bracket.
Installation
Installation
Fastening
Fasten the profile to the ceiling using self-tapping screws or anchors through mounting angle brackets, or fasten it directly with self-tapping screws to the slope of a roof window. Recommended fixing spacing: 500 mm.
Jointing
Create joints without transitions or visible gaps using a 2 mm rod and a 15 mm connecting band.
Ceiling membrane insertion
Insert the standard-cut membrane using a spatula with a working part at least 35 mm long and angled at 15 to 20 degrees.
Ceiling membrane removal
The membrane can be removed without damage.
Applications
Applications
Designed for bypassing stair openings and roof windows in stretch ceiling systems.
