Profile LIGHTRA X030 s

Profile LIGHTRA X030 s

$36.00 USD
$36.00 USD
Sale Sold out
Color

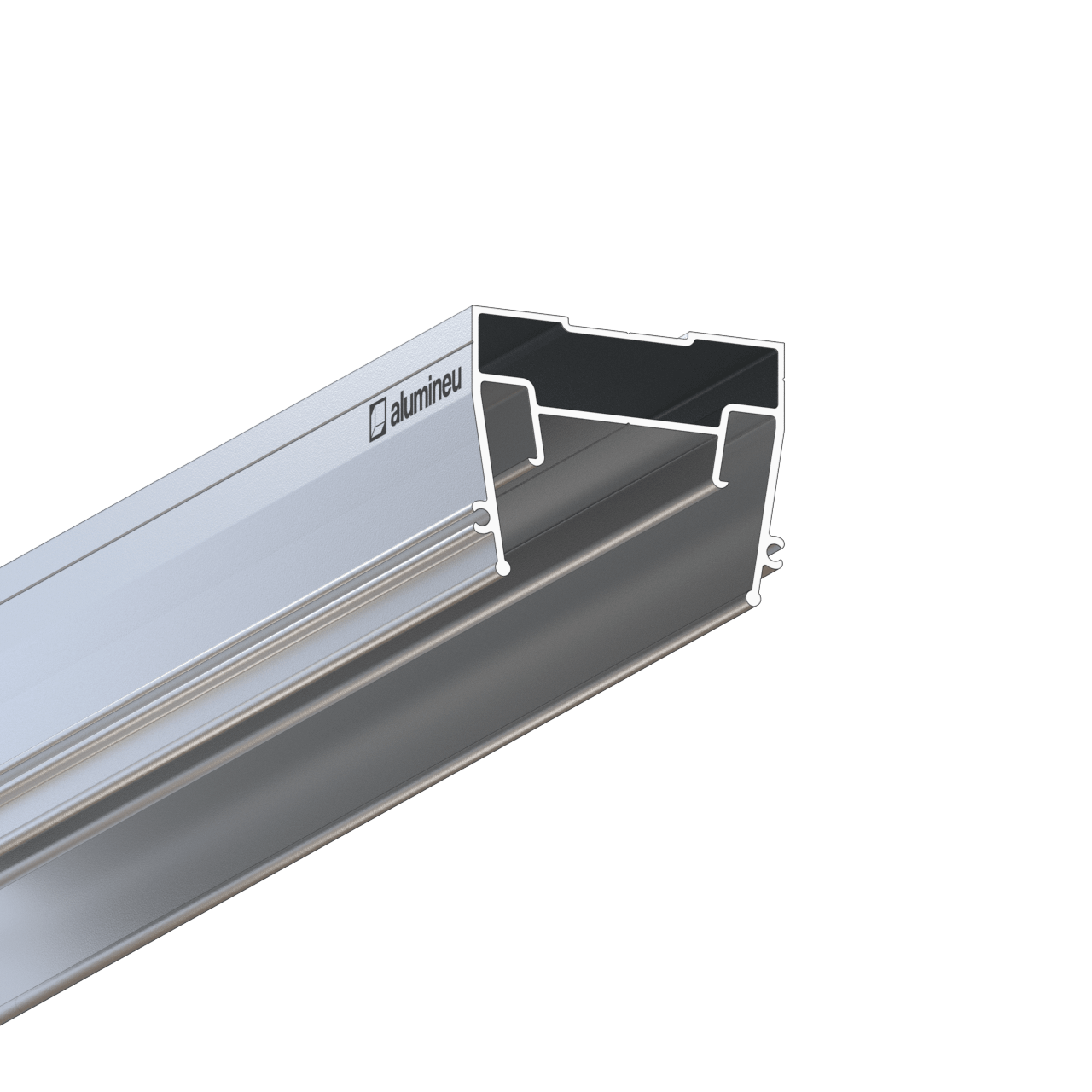

LIGHTRA X030 s is a dividing aluminum profile for stretch ceilings with a harpoon membrane fastening system. It is intended for creating light lines with a compact profile geometry and a clean linear appearance.

The profile is designed for LED strip use and provides accurate membrane fixation, straightforward installation, and service access to the lighting channel.

  • Material: aluminum
  • Length: 2000 mm
  • Light opening width: more than 30 mm
  • Membrane attachment: harpoon

Profile details

Construction

  • Marking for self-tapping screw installation.
  • Angled grooves for harpoon fixation.
  • Joining grooves for profile connection.
  • Groove for the connecting band.
  • Shelf for LED strip installation.

Included accessories

  • LIGHTRA X030 s profile
  • Cut connecting band: 2 pieces per joint
  • Joining rods, 2 mm diameter: 2 pieces per joint

Optional accessories

Mounting angle bracket, INSERTA Y030 insert, ENDCAPP Y204 end cap, self-tapping screws for fixing the end cap (2 pieces per end cap), DIFFUSY Y130 diffuser, and DIFFUSY Y130 B diffuser.

Installation

Fastening

Fasten the profile to the ceiling using self-tapping screws or anchors through mounting angle brackets. The fixing spacing must not exceed 1 m.

Ceiling membrane insertion

Insert a standard-cut membrane using a straight standard spatula. For freestanding light lines, bond the membrane to the end cap.

Ceiling membrane removal

The membrane can be removed without damage.

LED strip

The lighting channel is closed with a light-diffusing insert or diffuser in white or black and allows easy access for replacement without removing the membrane.

Applications

Designed for creating light lines in stretch ceiling systems.

Downloads

Catalog.pdf
