• Profile LIGHTRA X050
1 1

AluminUS

Profile LIGHTRA X050

Profile LIGHTRA X050

$47.00 USD
$47.00 USD
Sale Sold out
Color

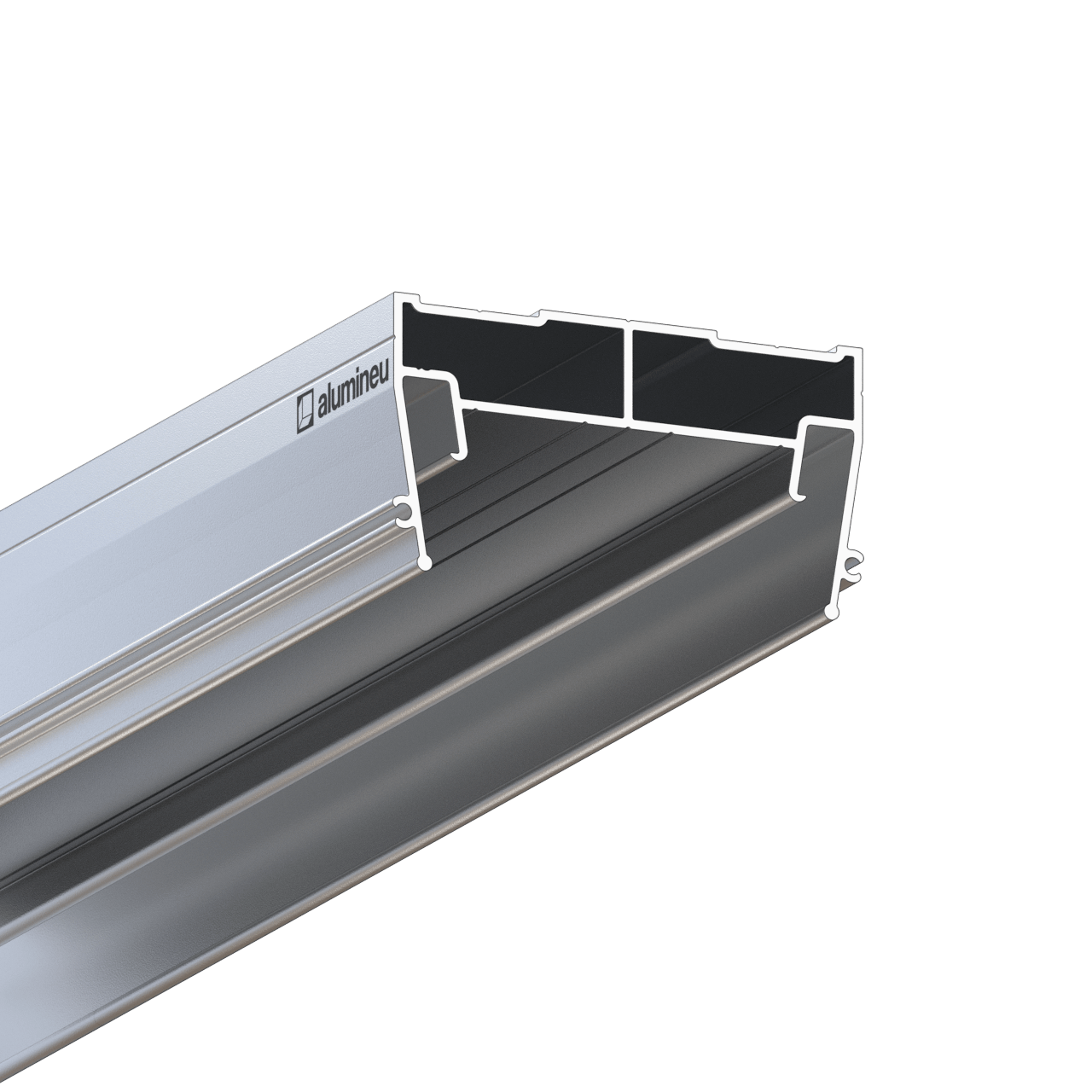

LIGHTRA X050 is a dividing aluminum profile for stretch ceilings with a harpoon membrane fastening system. It is designed for wider light lines and for layouts where multiple LED rows are required.

The profile combines secure membrane fixation with a broad illuminated opening and diffuser compatibility, making it suitable for more expressive lighting compositions.

  • Material: aluminum
  • Length: 2000 mm
  • Light opening width: more than 50 mm
  • Membrane attachment: harpoon
  • LED layout: up to 4 rows

Profile details

Construction

  • Marking for self-tapping screw installation.
  • Angled grooves for harpoon fixation.
  • Joining grooves for profile connection.
  • Groove for the connecting band.
  • Shelf for LED strip installation.

Included accessories

  • LIGHTRA X050 profile
  • Cut connecting band: 2 pieces per joint
  • Joining rods, 2 mm diameter: 2 pieces per joint

Optional accessories

Mounting angle bracket, ENDCAPP Y203 end cap, self-tapping screws for fixing the end cap (2 pieces per end cap), and DIFFUSY Y150 diffuser.

Installation

Fastening

Fasten the profile to the ceiling using self-tapping screws or anchors through mounting angle brackets. The fixing spacing must not exceed 1 m.

Jointing

Create joints without a step or visible gap using a 2 mm joining rod.

Ceiling membrane insertion

Insert a standard-cut membrane using a straight standard spatula. For freestanding light lines, bond the membrane to the end cap.

Ceiling membrane removal

The membrane can be removed without damage.

LED strip

The profile is used with a white diffuser and can accommodate up to four LED rows.

Applications

Designed for creating light lines in stretch ceiling systems.

Downloads

Catalog.pdf
