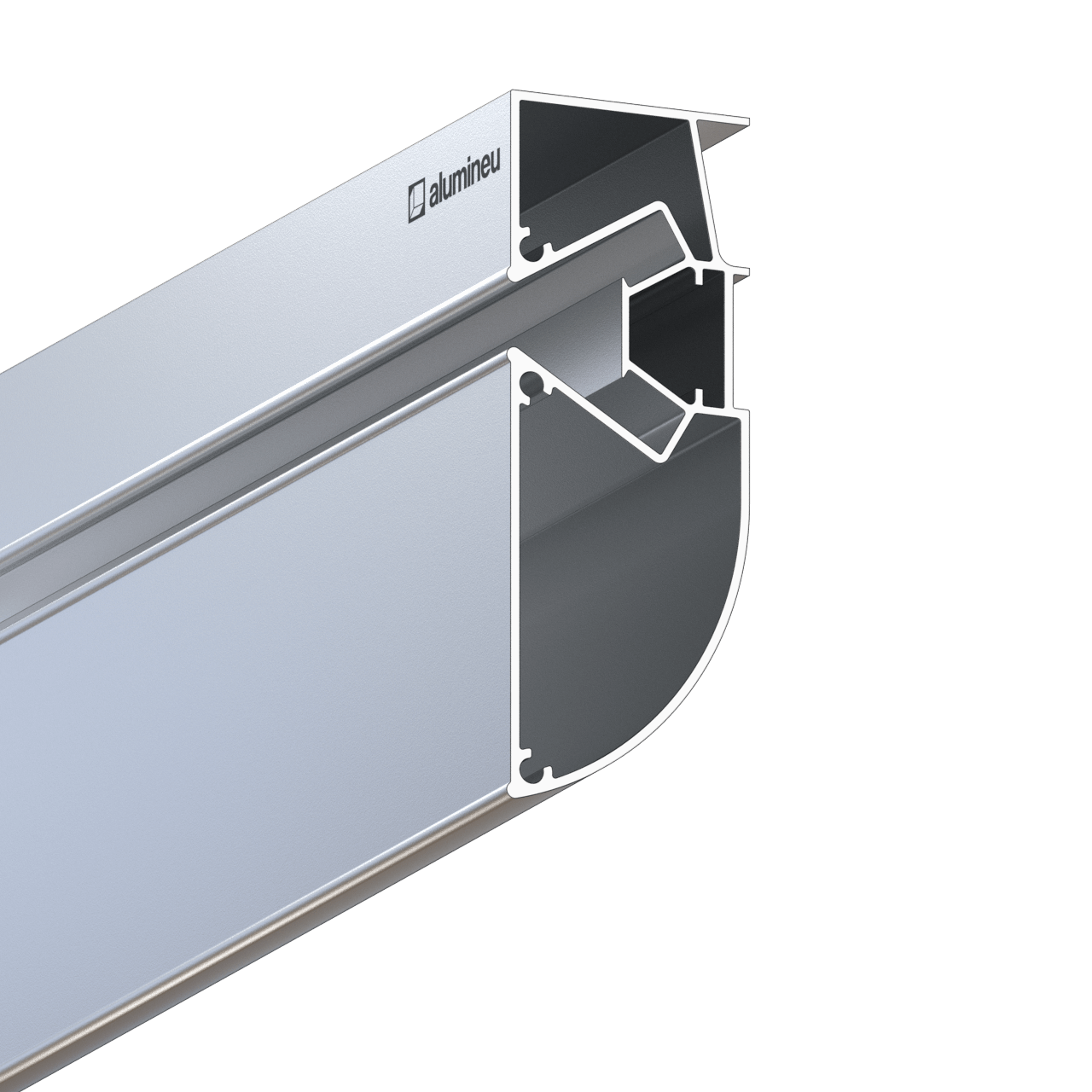

Profile STRATOS X701

Construction

• Joining groove.
• Angled groove for harpoon fixation.
• Groove for the connecting band.
• Groove for insert.
• Reinforced bumper for greater rigidity.

Included accessories

• STRATOS X701 profile
• Cut connecting band: 3 pieces per joint
• Joining rods, 3 mm diameter: 3 pieces per joint

Optional accessories

Mounting angle bracket.

Fastening

Fasten to the ceiling using self-tapping screws or anchors through mounting angle brackets. Fixing spacing must not exceed 1 m on straight sections and 0.7 m on curved sections.

Jointing

Create joints without transitions or visible gaps using a 3 mm rod and a 15 mm connecting band.

Membrane cutting

If straight internal corners are present, adjust the membrane cut accordingly.

Ceiling membrane insertion

Insert the upper-level membrane using a standard straight spatula. Insert the lower-level membrane using a spatula with a working edge at least 35 mm long and angled at 70 to 90 degrees.

Designed for multi-level stretch ceilings with a 62 mm level transition (without backlighting).
