Profile STRATOS X703
Profile STRATOS X703
Couldn't load pickup availability

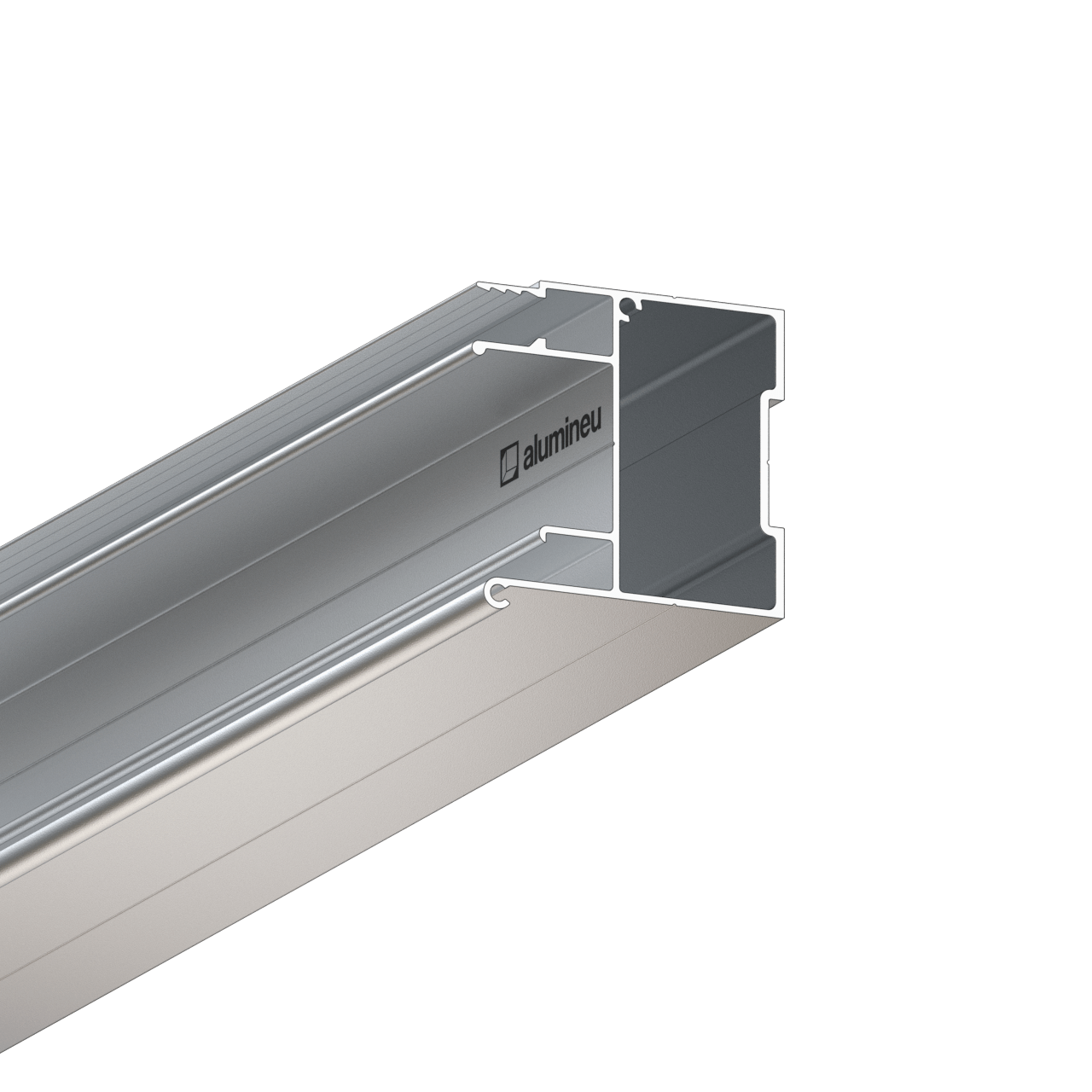

STRATOS X703 is an aluminum profile for stretch ceilings with a harpoon membrane fastening system. It is designed for structures, niches, and bypassing complex walls and includes an LED strip shelf.
- Material: aluminum
- Length: 2000 mm
- Finish: unfinished
- Bending radius: greater than 120 mm
- Light opening width: 29 mm
- Membrane attachment: harpoon
Profile details
Profile details
Construction
- Joining groove.
- Vertical groove for harpoon fixation.
- Groove for the connecting band.
- Shelf for LED strip installation.
Included accessories
- STRATOS X703 profile
- Cut connecting band: 2 pieces per joint
- Joining rods, 3 mm diameter: 2 pieces per joint
Optional accessories
Mounting angle bracket.
Installation
Installation
Fastening
Fasten to the ceiling using self-tapping screws or anchors through mounting angle brackets. Fixing spacing must not exceed 0.7 m on straight sections and 0.3 m on curved sections.
On curved sections, seal profile cuts with metallized tape to eliminate gaps. Curved sections can be in horizontal or vertical planes.
Jointing
Create joints without transitions or visible gaps using a 2 mm rod.
Membrane recommendations
For lighting applications, do not use colored membranes or matte-finish membranes.
Ceiling membrane insertion
Insert the standard-cut membrane using a spatula with a working edge at least 35 mm long and angled at 70 to 90 degrees.
Applications
Applications
Designed for structures and niches in stretch ceiling systems, with integrated LED shelf for lighting layouts.
