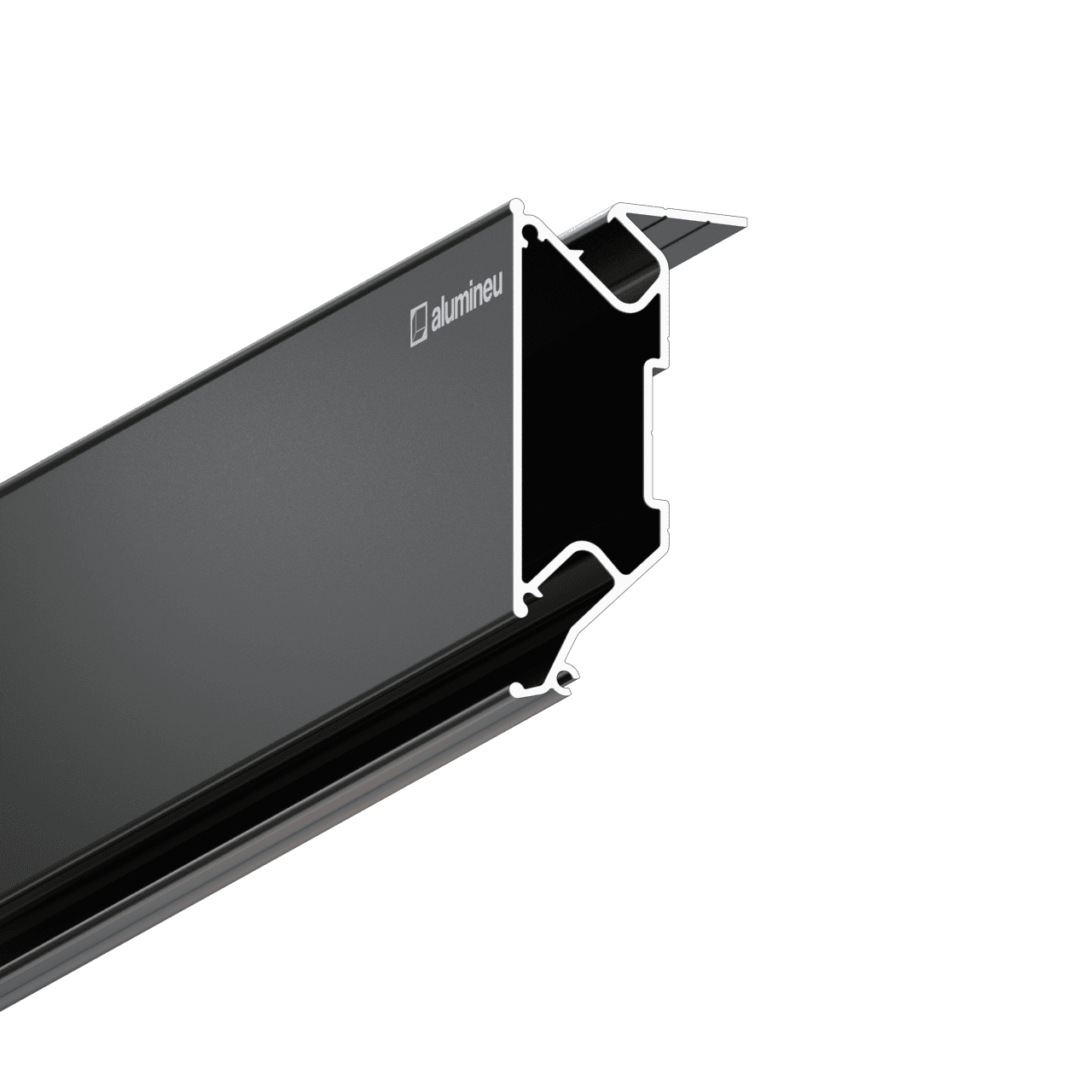

Profile STRATOS X704
Profile STRATOS X704
Couldn't load pickup availability
STRATOS X704 is an aluminum profile for stretch ceilings with a harpoon membrane fastening system. It is designed for structures and niches, including installations on weakly load-bearing surfaces and surfaces where fastening is difficult.
- Material: aluminum
- Length: 2000 mm
- Available finishes: unfinished, white matte, black matte
- Bending radius: greater than 120 mm
- Level transition: 62 mm
- Membrane attachment: harpoon
Profile details
Profile details
Construction
- Joining groove.
- Angled groove for harpoon fixation.
- Groove for the connecting band.
- Marking for self-tapping screw installation.
- Reinforced bumper for greater rigidity.
- Shelf for INSERTA Y008 insert.
Included accessories
- STRATOS X704 profile
- Cut connecting band: 1 piece per joint
- Joining rods, 2 mm diameter: 2 pieces per joint
Optional accessories
Mounting angle bracket.
Installation
Installation
Fastening
Trim the mounting shelf in the profile and fasten to the ceiling through a mounting angle bracket using self-tapping screws or anchors.
Fixing spacing must not exceed 1 m on straight sections and 0.5 m on curved sections.
Jointing
Create joints without transitions or visible gaps using a 2 mm rod and a 15 mm connecting band.
Ceiling membrane insertion
Insert the upper-level membrane using a standard straight spatula. Insert the lower-level membrane using a spatula with a working edge at least 35 mm long and angled at 70 to 90 degrees.
Ceiling membrane removal
The membrane can be removed without damage.
Applications
Applications
Designed for structures and niches, including installations where standard fastening is constrained.
