• Profile TISSURE Z405
1 1

AluminUS

Profile TISSURE Z405

Profile TISSURE Z405

$726.00 USD
$726.00 USD
Sale Sold out
Color
Length

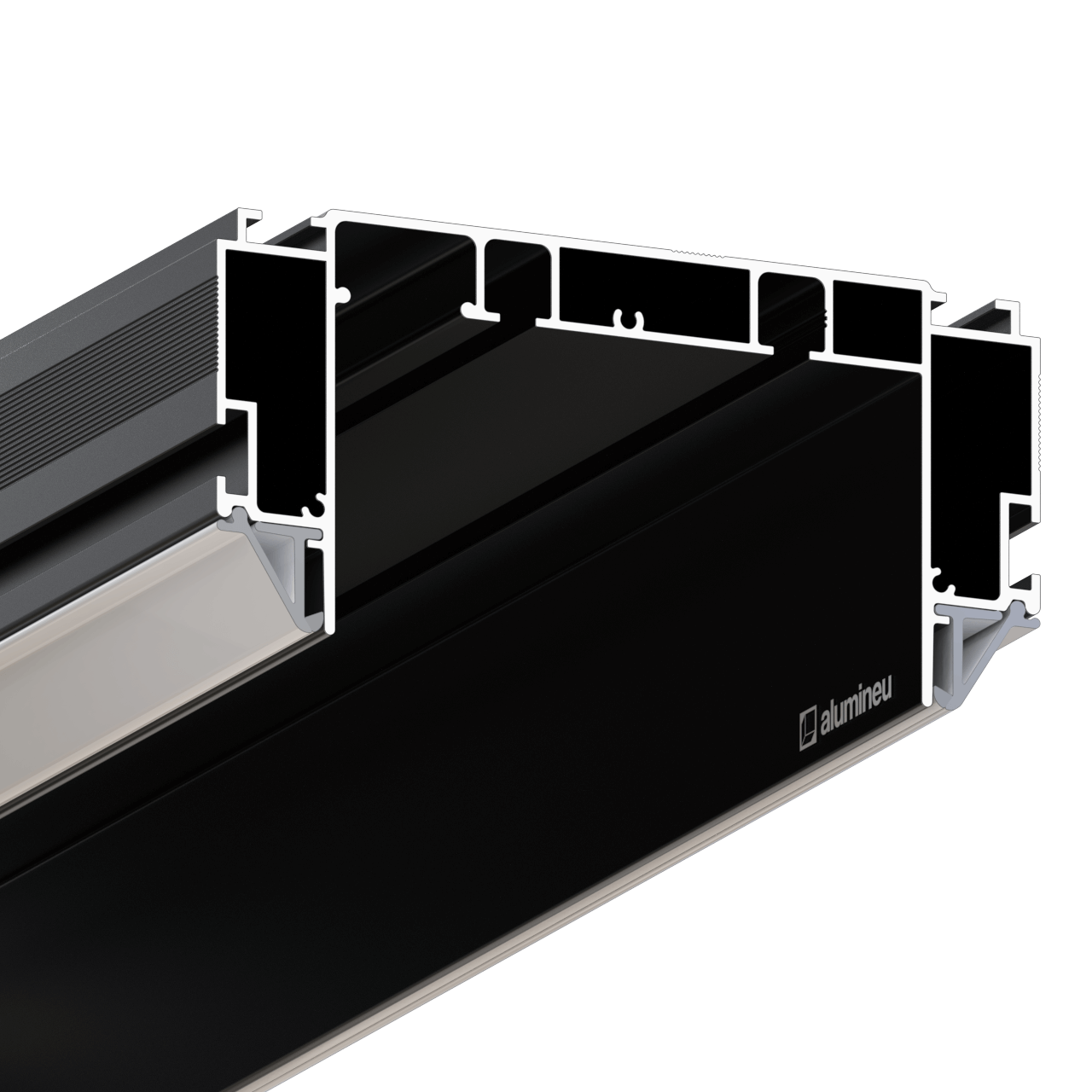

TISSURE Z405 is a clip-in profile for concealed U-shaped curtain niches with integrated lighting and two grooves for installing curtains and drapes.

  • Material: aluminum
  • Lengths: 2000 mm, 3200 mm
  • Available finishes: white matte, black matte
  • Number of tracks: 2
  • Membrane attachment: clips

Profile details

Construction

  • Groove for INSERTA Y015 insert.
  • Groove for the connecting band.
  • Joining groove.
  • Groove for clips.
  • Shelf for LED strip installation.
  • Curtain hook track.

Included accessories

  • TISSURE Z405 profile
  • Clips

Optional accessories

Mounting angle bracket, INSERTA Y015 insert, and DIFFUSY Y114 diffuser.

Installation

Fastening

Fasten to the ceiling using self-tapping screws or anchors through mounting angle brackets. Fixing spacing must not exceed 1.5 m.

Jointing

Use connectors for joints without transitions or visible gaps.

Ceiling membrane insertion

Insert the membrane using a spatula between the profile blade and the clips.

Applications

Designed for concealed curtain niches with lighting using a clip-in membrane fastening system.

Downloads

Catalog.pdf
